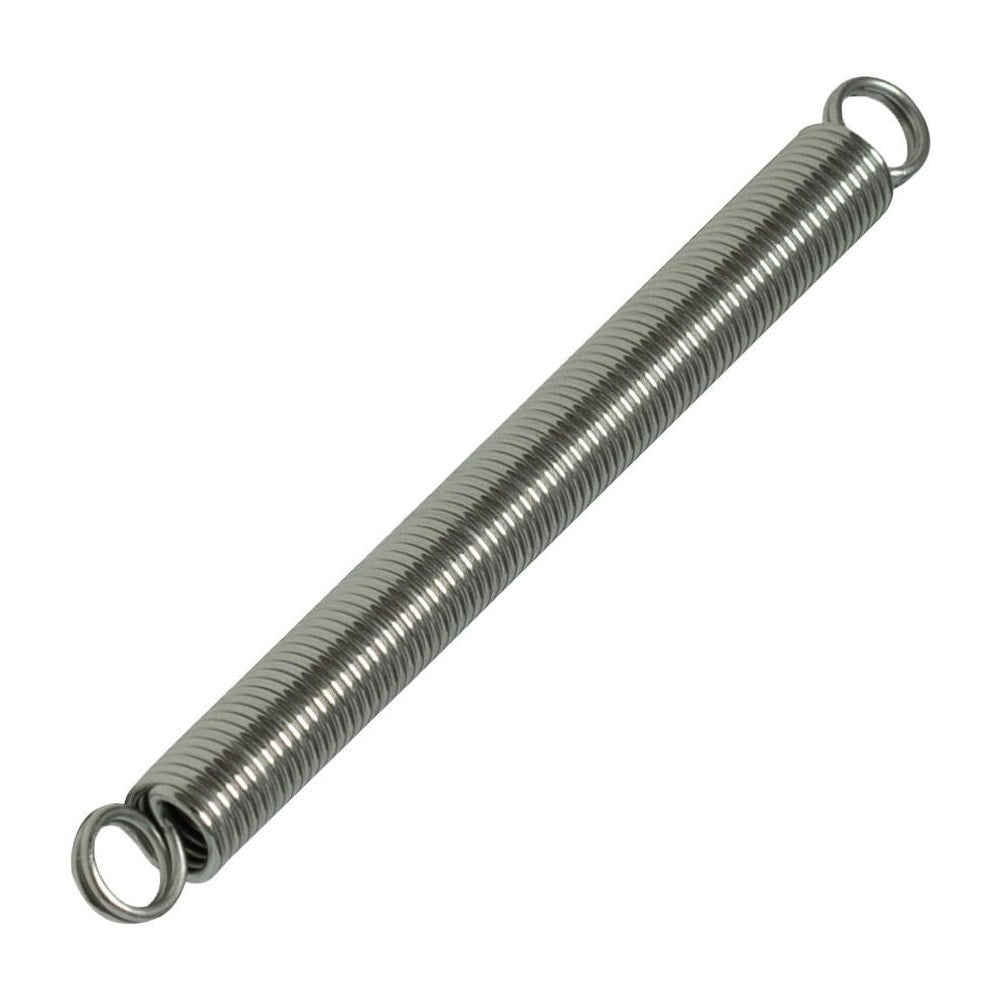

Extension Springs; End Type: Double Loop; Outside Diameter (Decimal Inch
Item #: 03050648
Brand: Associated Spring Raymond
Model #: MCDE0500011000S
Product Specifications
| End Type | Double Loop |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.5000 |
| Spring Rate | 1.6000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 10.1260 |
| Initial Tension (Lb.) | 3.26 |
| Maximum Extended Length (Decimal Inch) | 16.6000 |
| Free Length (Inch) | 10 |
| Inside Hook Length (Fractional Inch) | 10 |
| Standards | ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (Decimal Inch) | 0.0630 |
| UNSPSC Code | 31161907 |
