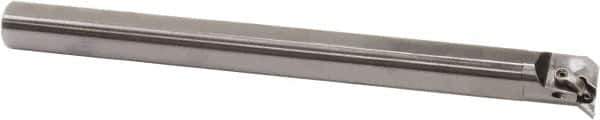

Sumitomo - 2-1/4" Min Bore Diam, 14" OAL, 1-3/4" Shank Diam, A-MDUN Indexable Boring Bar - DNMG 432 Insert, Pin & Clamp Holding Method
Item #: 53945895
Brand: Sumitomo
Model #: U101992
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MDUN |
| Series | ANSI |
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Insert Compatibility | DNMG 432 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Positive |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 10 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | DNMG 432 |
| Toolholder Material | Steel |
