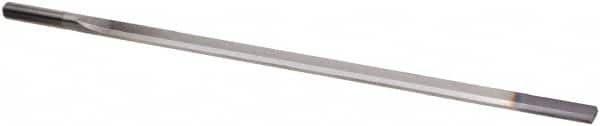

Die Drill Bit: 0.2756″ Dia, Solid Carbide nano-A Finish, Series 5647
Item #: 53733028
Brand: Guhring
Model #: 9056470070000
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Decimal) | 0.2756 in; 0.2756; 7.0 mm |
| Drill Size (Metric) | 7.00 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 385.00 |
| Flute Length (Inch) | 385.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 8.0 mm |
| Shank Diameter (Metric) | 8.00 |
| Shank Diameter (Decimal) | 8.0 mm |
| Point Type | Special |
| OverallLength (Decimal) | 430.0 mm |
| Overall Length (Metric) | 430.00 |
| Finish/Coating | nano-A (Tip) |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Flute Length x Diameter Ratio | 50xD |
| Series/List | 5647 |
