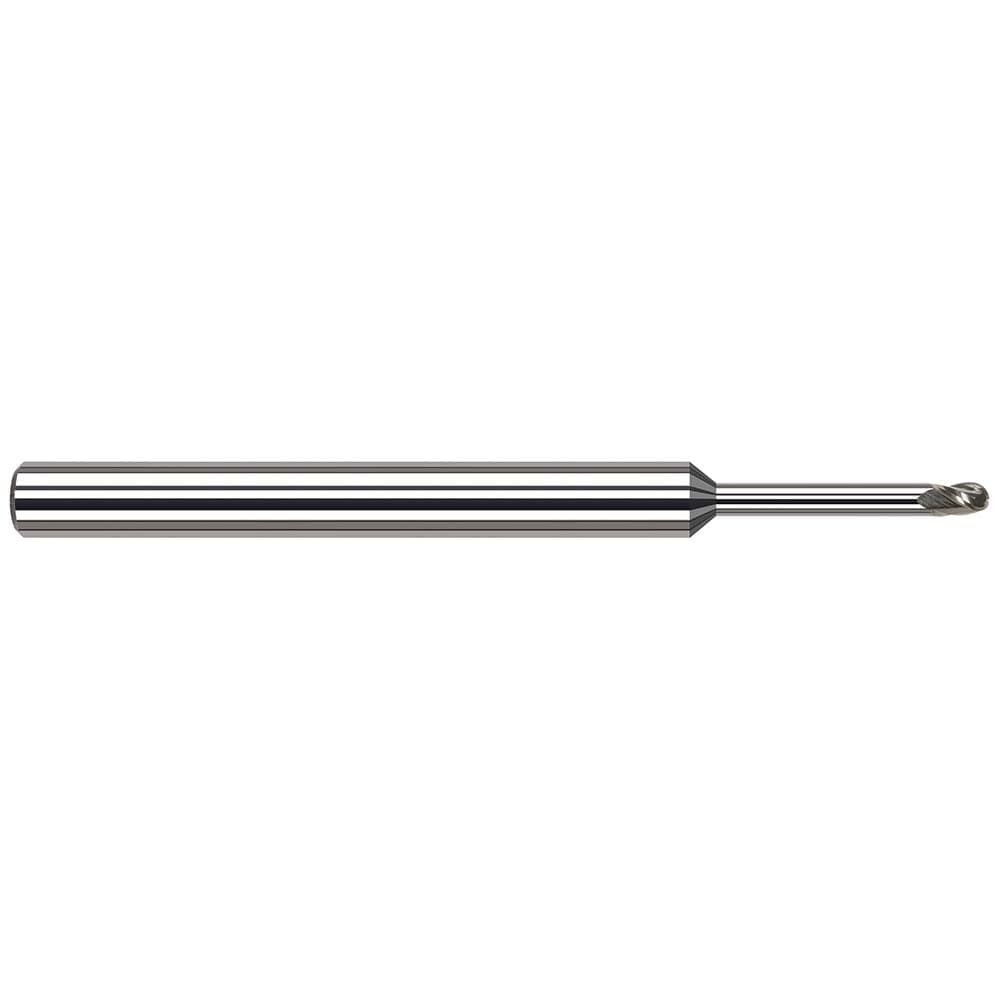

Ball End Mill: 5/32" Dia, 15/64" LOC, 3 Flute, Solid Carbide
Item #: 33738386
Brand: Harvey Tool
Model #: 54510
Product Specifications
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 15/64 |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 3/16 |
| Extended Reach | Yes |
| Variable Helix | Yes |
| Variable Index | No |
| Helix Angle | 42 |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Stub |
| Helix Style | Variable |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Nose Radius (Decimal Inch) | 0.0781 |
| Neck Length (Inch) | 1-1/64 |
| Neck Length (Decimal Inch) | 1.0160 |
| Reach Length (Inch) | 1-1/4 |
| Reach Length (Decimal Inch) | 1.2500 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M; N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Variable Helix End Mills for Aluminum Alloys - Ball - Long Reach, Stub Flute, Material Specific End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2340 |
| Manufacturers Catalog Number | 54510 |
| System Of Measurement | Fractional Inch |
