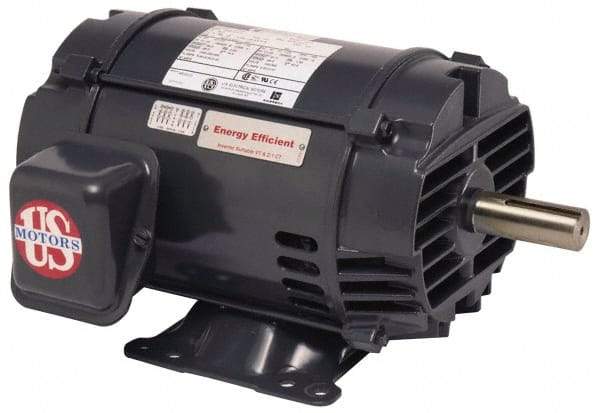

US Motors - 75 hp, ODP Enclosure, No Thermal Protection, 3,565 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 364 Frame, Rigid Mount, 1 Speed, Ball Bearings, 68 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 53651030
Brand: US Motors
Model #: D75E1GS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | ODP |
| Horsepower | 75 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3565 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 364 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 68 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 26.5600 |
| Full Load Efficiency Rating | 94.1 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
