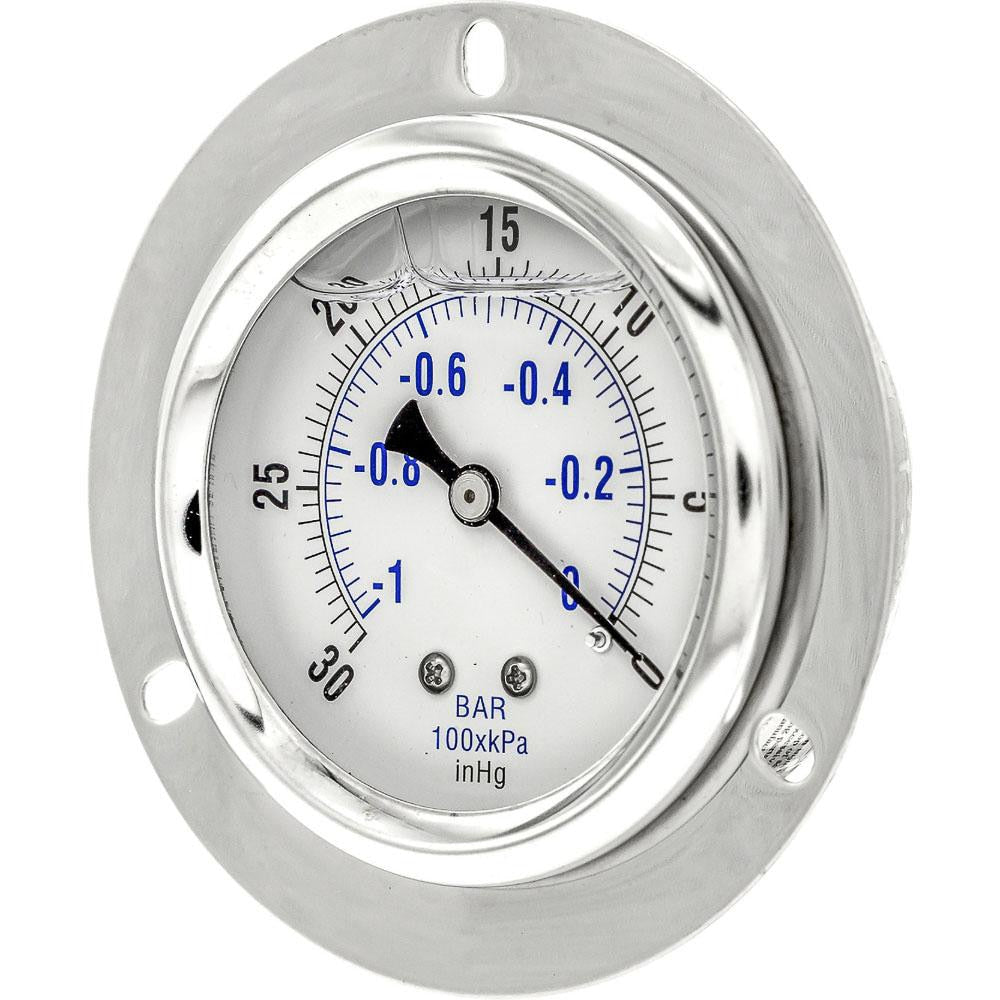

Brand: PIC Gauges / Part #: PRO-204L-254A
Item #: 00000703
Brand: PIC Gauges
Model #: PRO-204L-254A
Product Specifications
| Gauge Type | Industrial Pressure Gauges |
| Scale Type | Dual |
| Accuracy (%) | 2-1-2% |
| Dial Type | Analog |
| Thread Type | 1/4" MNPT |
| Bourdon Tube Material | Bronze |
| Type of Liquid Filler | Glycerin |
| Mount Type | Front Flange Panel; Center Back |
| Wetted Parts Material | Copper Alloy |
| Dial Diameter (Decimal Inch) | 2.5000 |
| Minimum Pressure (psi) | -30.00 |
| Maximum Pressure (Psi - 2 Decimals) | 0.00 |
| Minimum Hg | -30 |
| Maximum Hg | 0 |
| Liquid Filled | Yes |
| Case Material | Stainless Steel |
| Lens Material | Polycarbonate |
| Thread Size | 1/4 in NPT |
| Minimum Working Temperature (Deg F) | 30 |
| Maximum Working Temperature (F) | 160.000 |
| Minimum Working Temperature (Deg C) | -1 |
| Maximum Working Temprature (Deg C) | 71 |
