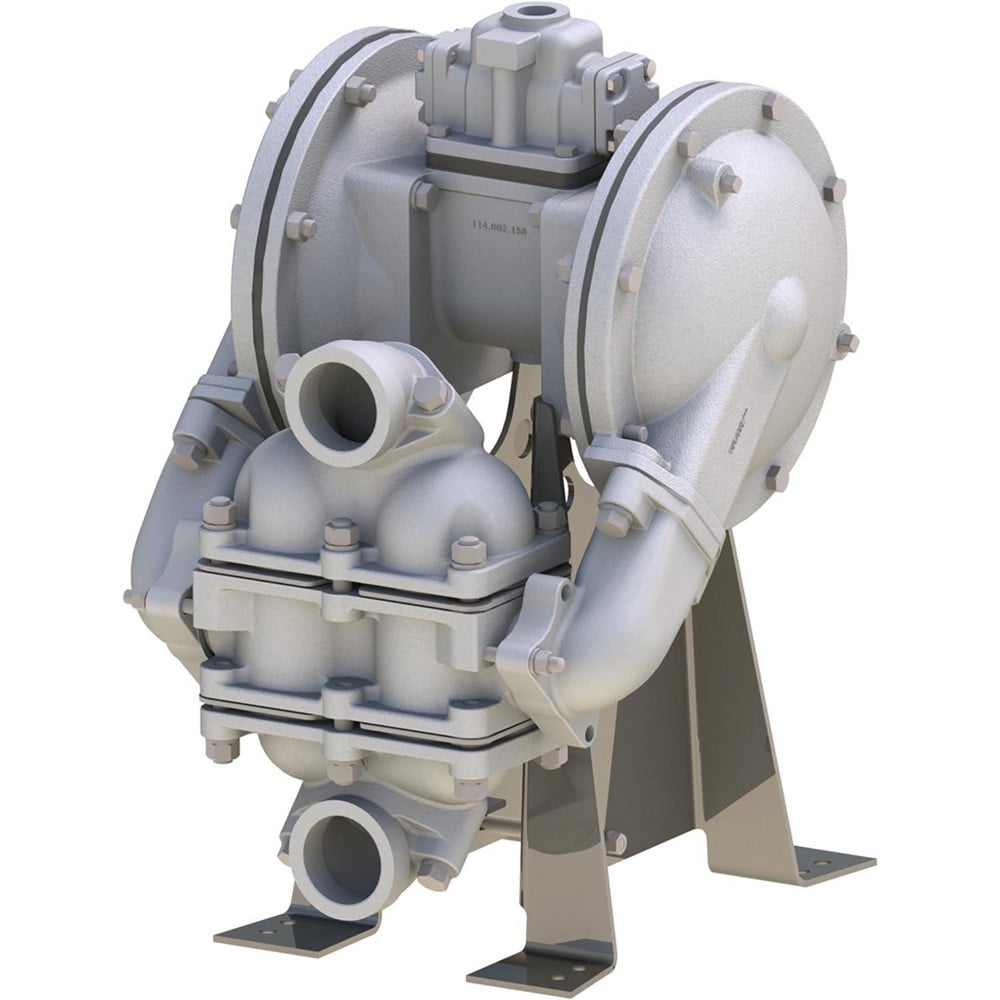

Air-Operated Diaphragm Pumps; Maximum Flow Rate (Gpm
Item #: 02365534
Brand: SandPIPER
Model #: HDB2,DS4CI.
Product Specifications
| Maximum Flow Rate (Gpm - 2 Decimals) | 135.00 |
| Maximum Working Pressure | 125.000 |
| Thread Type | NPT |
| Inlet Size | 2 in |
| Cubic Feet Per Minute | 100 SCFM |
| Diaphragm Material | Santoprene |
| Ball Material | Santoprene |
| Check Seat Material | Stainless Steel |
| Height (Inch) | 23.32 |
| Width (Inch) | 15.63 |
| Length (Inch) | 17.22 |
| Port Type | NPT |
| Body Material | Cast Iron |
| Maximum Temperature (F) ( - 0 Decimals) | 275.000 |
| Maximum Solid Size (Inch) | 2 |
| Air Inlet Size (Inch) | 3/4 |
| Maximum Cubic Feet Per Minute (CFM) | 100.00 |
| UNSPSC Code | 40151548 |
