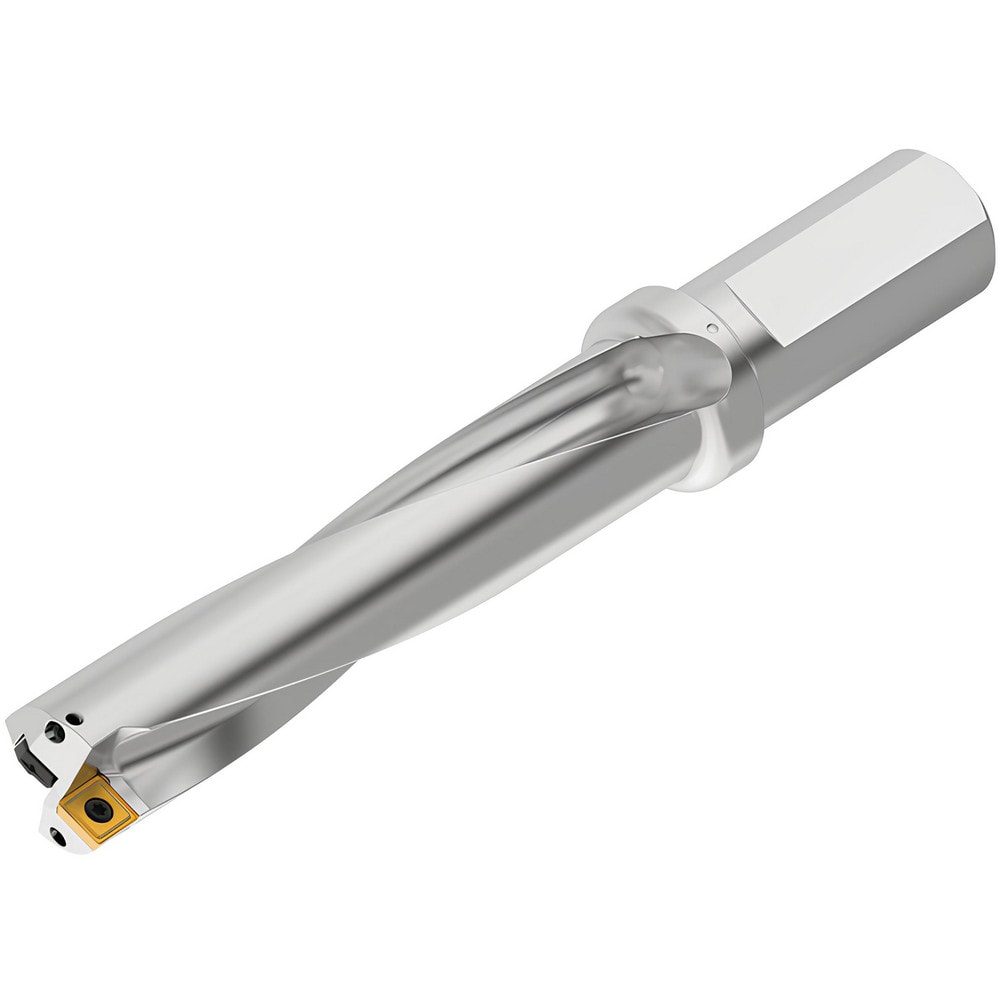

Indexable Insert Drill: DFPR250R5WB25M, 26.00 mm Max Dia, 125.00 mm Max Depth, 5xD, 25.00 mm Shank Dia
Item #: 02635316
Brand: Kennametal
Model #: 7034208
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Depth (mm) | 125.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 090305; 100305 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DFPR |
| Flute Length (mm) | 125.00 |
| Body Length | 142.00 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.4x3; 9.9x3 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR090305__O; DFPR100305__I |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M3-0.5x8T9 |
| Coolant Through | Yes |
