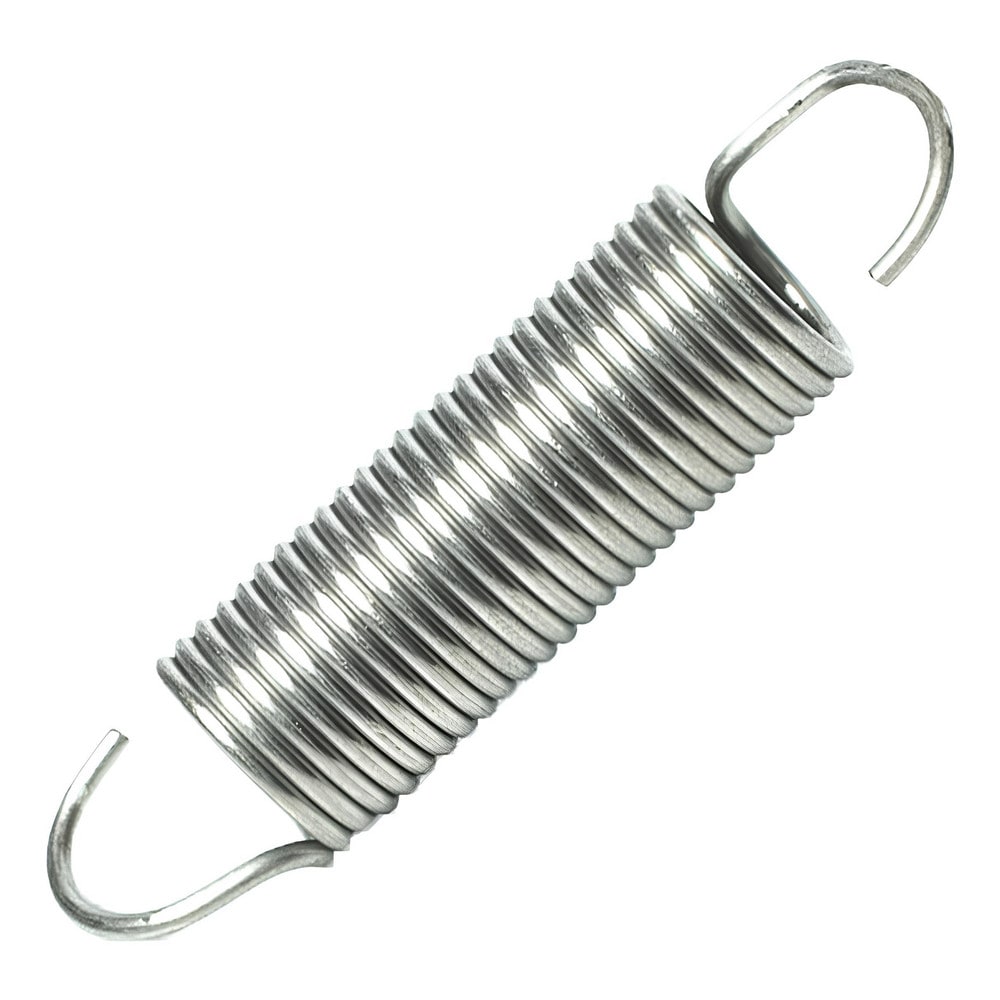

Extension Springs; End Type: Hook; Outside Diameter (Decimal Inch
Item #: 03249216
Brand: Associated Spring Raymond
Model #: MH07501252500S
Product Specifications
| End Type | Hook |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7500 |
| Spring Rate | 119.7900 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 2.7500 |
| Initial Tension (Lb.) | 6.59 |
| Maximum Extended Length (Decimal Inch) | 3.0600 |
| Free Length (Inch) | 2-1/2 |
| Inside Hook Length (Fractional Inch) | 2-1/2 |
| Standards | AMS 5688; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (Decimal Inch) | 0.1250 |
| UNSPSC Code | 31161907 |
