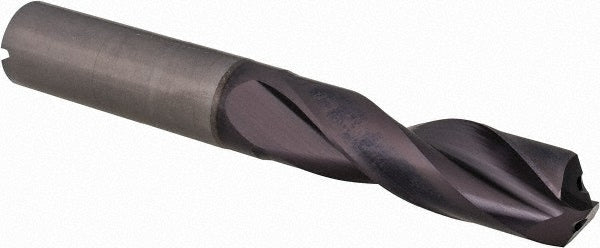

Screw Machine Length Drill Bit: 5/8" Dia, 140 deg Point, Solid Carbide
Item #: 02903599
Brand: Guhring
Model #: 9055100158700
Product Specifications
| Drill Bit Size (Inch) | 5/8 |
| Drill Bit Size (Decimal Inch) | 0.6250 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Drill Tip Finish/Coating | FIREX |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Shank Diameter (mm) | 16.00 |
| Series | 5510 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | nano-FIREX |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.6220 |
| Maximum Drilling Depth (mm) | 41.20 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Standards | DIN 6537 K |
| Flute Length (Decimal Inch) | 2.5591 |
| Flute Length (mm) | 65.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | DK460UF |
| UNSPSC Code | 23241635 |
