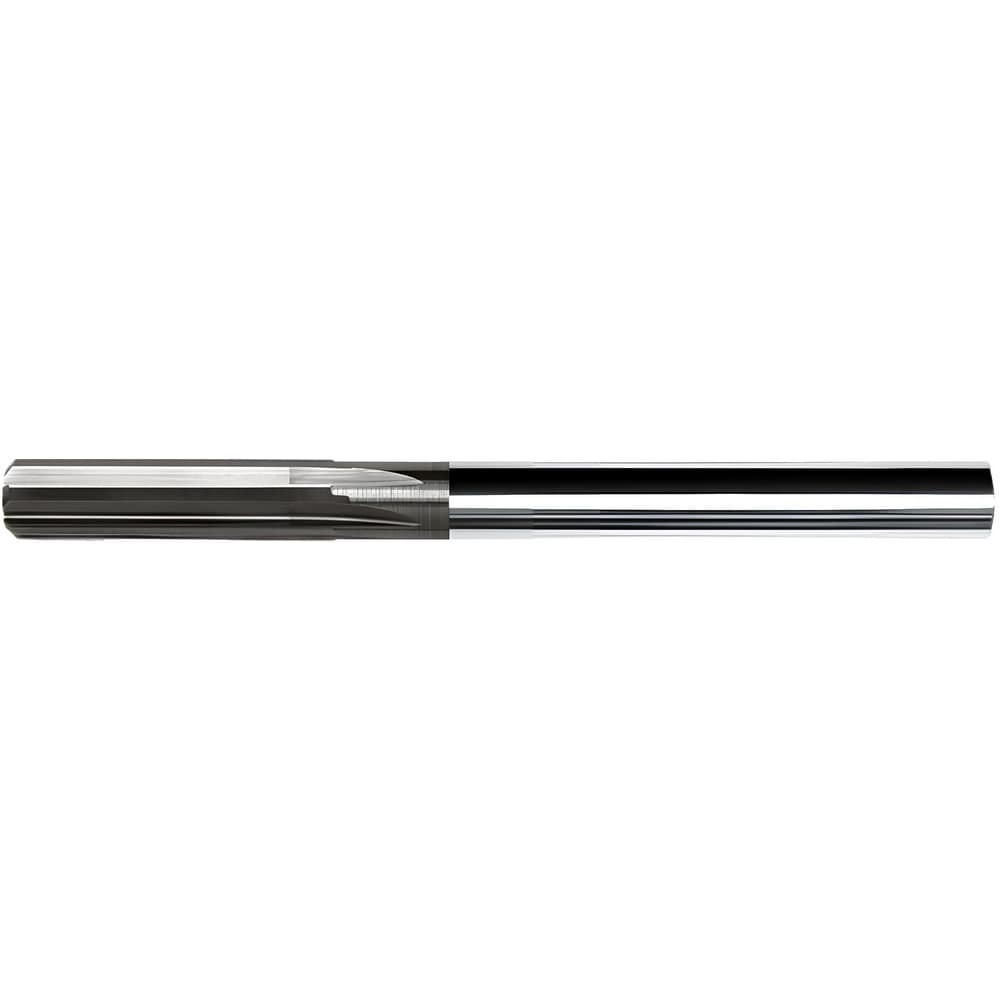

Chucking Reamer: 0.2330" Dia, 3" OAL, 1" Flute Length, Straight-Cylindrical Shank, Solid Carbide
Item #: 09210147
Brand: Internal Tool
Model #: 93-2330
Product Specifications
| Reamer Diameter Range (Decimal Inch) | 0.2000 - 0.2499 |
| Reamer Diameter (Decimal Inch) | 0.2330 |
| Tool Material | Solid Carbide |
| Flute Type | Straight |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 0.2330 |
| Flute Length (Inch) | 1 |
| Reamer Diameter Tolerance | +.0030 to -.0000 in |
| Series | 93 |
| Cutting Direction | Right Hand |
| Pilot Diameter (Decimal Inch) | 0.2330 |
| UNSPSC Code | 23241611 |
