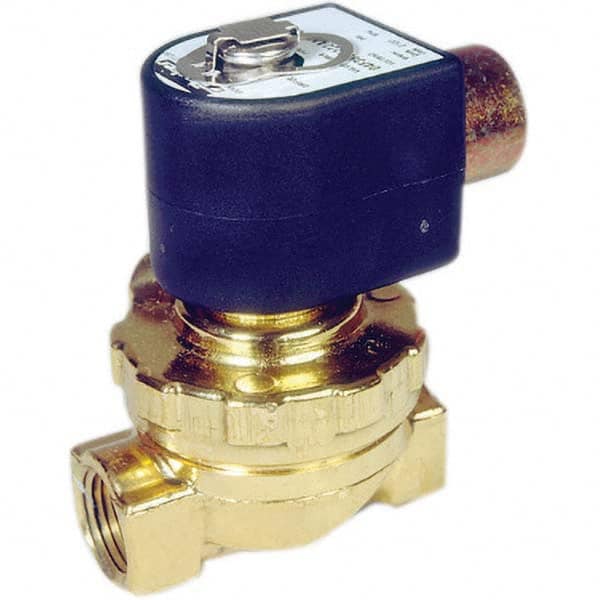

Parker - 24/60 VAC 1/2" NPT Port Brass Two-Way Internally Piloted Diaphragm Solenoid Valve
Item #: 84909969
Brand: Parker
Model #: 84909969
| Product Specifications | |
|---|---|
| Valve Type | Two-Way Internally Piloted Diaphragm |
| Port Size | 1/2 NPT |
| Maximum Working Pressure (psi) | 125.00 |
| Valve Unactuated State | Normally Closed |
| Body Material | Brass |
| Seal Material | PTFE |
| Voltage | 24/60 VAC |
| CV Factor NC | 3.60 |
| Minimum Working Pressure (psi) | 1.0 |
| Maximum Working Pressure (psi) | 125 |
| Special Item Information | Complete Assembly Pressure Vessel & Coil - For Hot Water & Steam |
| Height (Inch) | 3.41 |
| Length (Decimal Inch) | 2.440 |
| Orifice Size | 1/2 |
