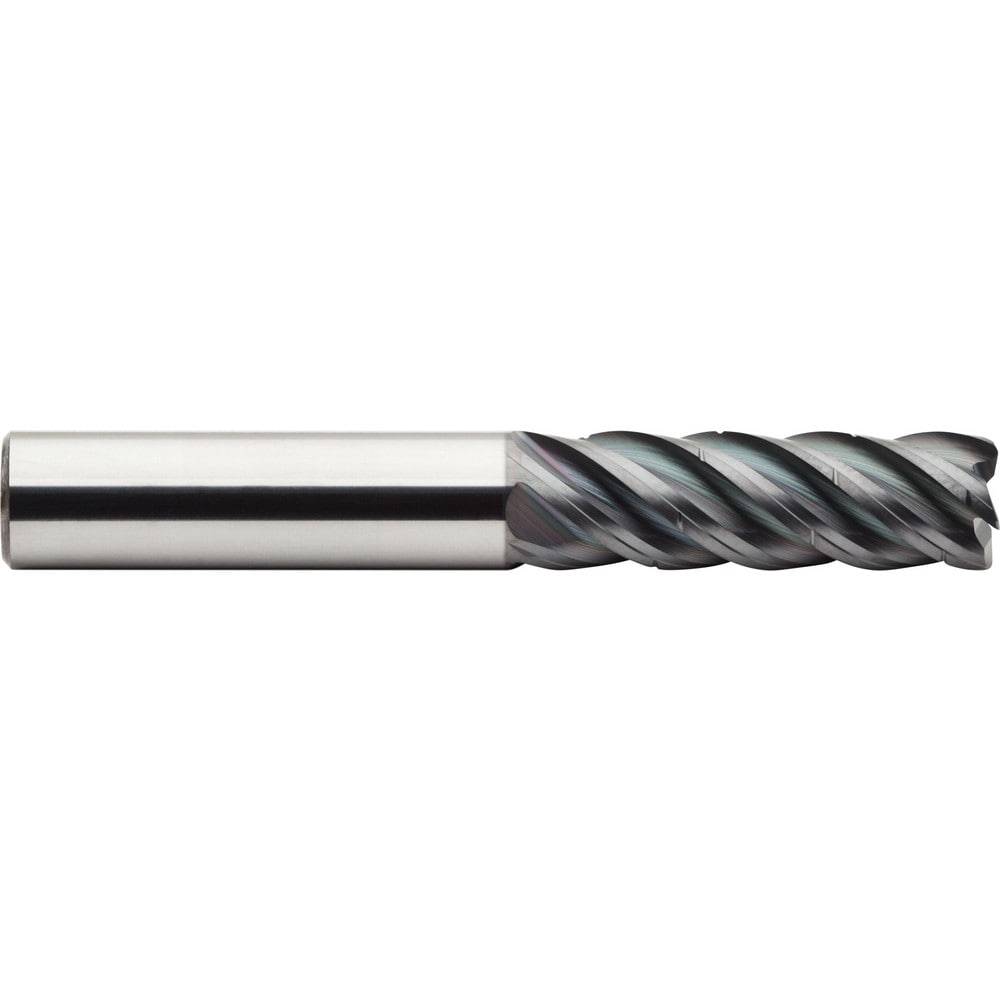

Corner Radius End Mill: 1/2" Dia, 2-1/8" LOC, 0.0300" Radius, 5 Flute, Solid Carbide
Item #: 23102569
Brand: M.A. Ford
Model #: XV5CB50044AQW
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 2-1/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | ALtima Q |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 2.1250 |
| Reach Length (Inch) | 2-1/8 |
| Mill Diameter Tolerance | +0.0000/-0.0025 in |
| Shank Diameter Tolerance | +0.0000/-0.0004 in |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; M |
| Series | XV5CB |
| Material Application | Alloy Steel; Stainless Steel; Titanium Alloy |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | XV5CB50044AQW |
