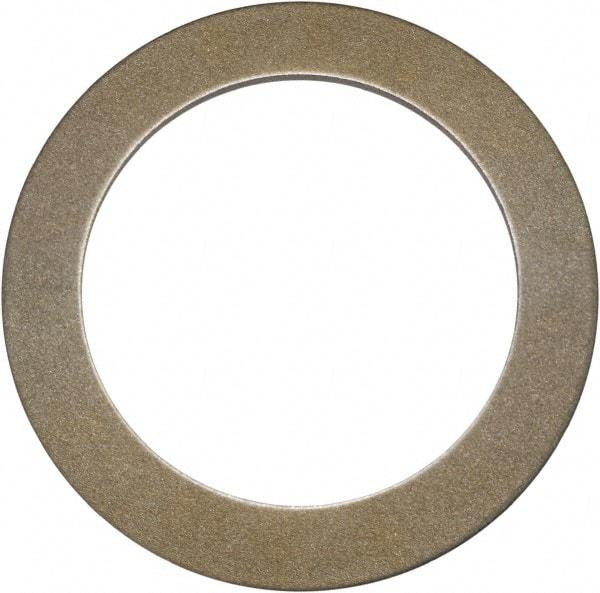

Mubea - 51mm ID, Grade 51CrV4 Chrome Vanadium Steel, Phosphate & Oil Finish, Belleville Disc Spring - 100mm OD, 7mm High, 3.8mm Thick
Item #: 53123568
Brand: Mubea
Model #: 180112
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 51.00 |
| Material | Chrome Vanadium Steel |
| Material Grade | 51CrV4 |
| Outside Diameter (mm) | 100.00 |
| Thickness (mm) | 3.80 |
| Overall Height (mm) | 7.00 |
| Deflection (mm) | 2.25 |
| Deflection to Flat (mm) | 3.20 |
| Load at Flat (N) | 25555.00 |
| Load at Deflection (N) | 20674.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
