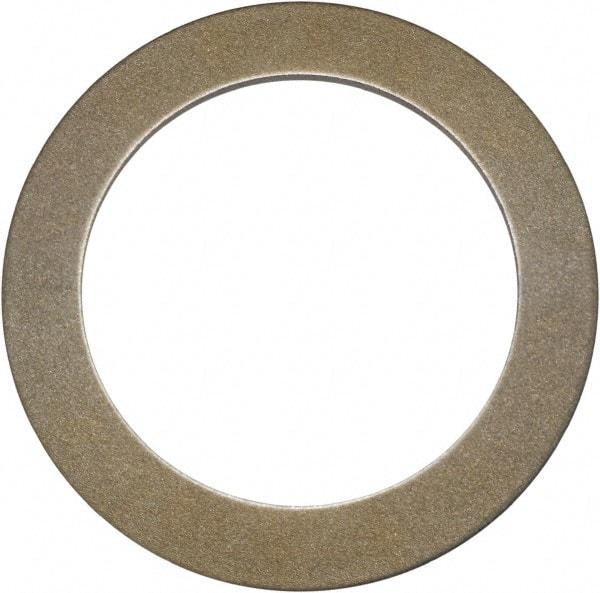

Mubea - 51mm ID, Grade 51CrV4 Chrome Vanadium Steel, Phosphate & Oil Finish, Belleville Disc Spring - 125mm OD, 9.4mm High, 5.65mm Thick
Item #: 53123493
Brand: Mubea
Model #: 180127
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 51.00 |
| Material | Chrome Vanadium Steel |
| Material Grade | 51CrV4 |
| Outside Diameter (mm) | 125.00 |
| Thickness (mm) | 5.65 |
| Overall Height (mm) | 9.40 |
| Deflection (mm) | 2.55 |
| Deflection to Flat (mm) | 3.40 |
| Load at Flat (N) | 58923.00 |
| Load at Deflection (N) | 44307.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
