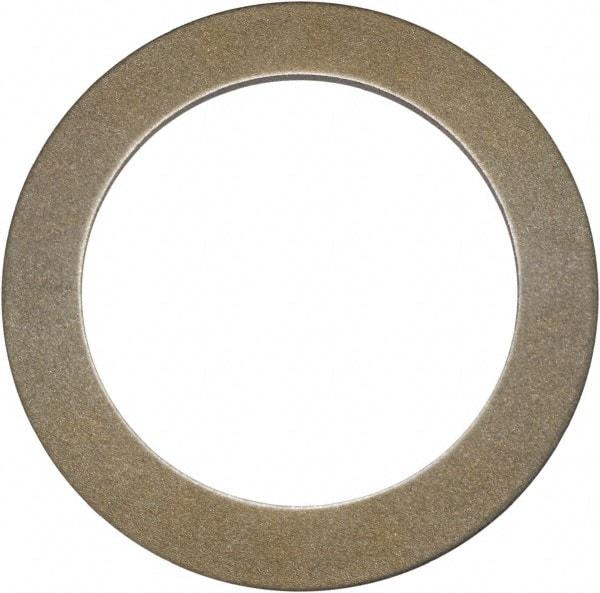

Mubea - 81mm ID, Grade 51CrV4 Chrome Vanadium Steel, Phosphate & Oil Finish, Belleville Disc Spring - 150mm OD, 13.4mm High, 9.4mm Thick
Item #: 53123261
Brand: Mubea
Model #: 190011
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 81.00 |
| Material | Chrome Vanadium Steel |
| Material Grade | 51CrV4 |
| Outside Diameter (mm) | 150.00 |
| Thickness (mm) | 9.40 |
| Overall Height (mm) | 13.40 |
| Deflection (mm) | 2.55 |
| Deflection to Flat (mm) | 3.40 |
| Load at Flat (N) | 236018.00 |
| Load at Deflection (N) | 158300.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
