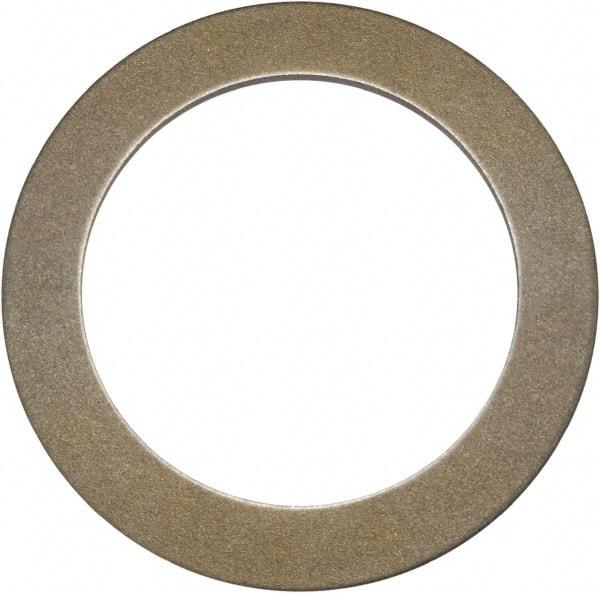

Mubea - 11.2mm ID, Grade 301 Stainless Steel, Phosphate & Oil Finish, Belleville Disc Spring - 22.5mm OD, 1.75mm High, 1.75mm Thick
Item #: 53123121
Brand: Mubea
Model #: 181001
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 11.20 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (mm) | 22.50 |
| Thickness (mm) | 1.75 |
| Overall Height (mm) | 1.75 |
| Deflection (mm) | 0.50 |
| Deflection to Flat (mm) | 0.50 |
| Load at Flat (N) | 2314.00 |
| Load at Deflection (N) | 2314.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
