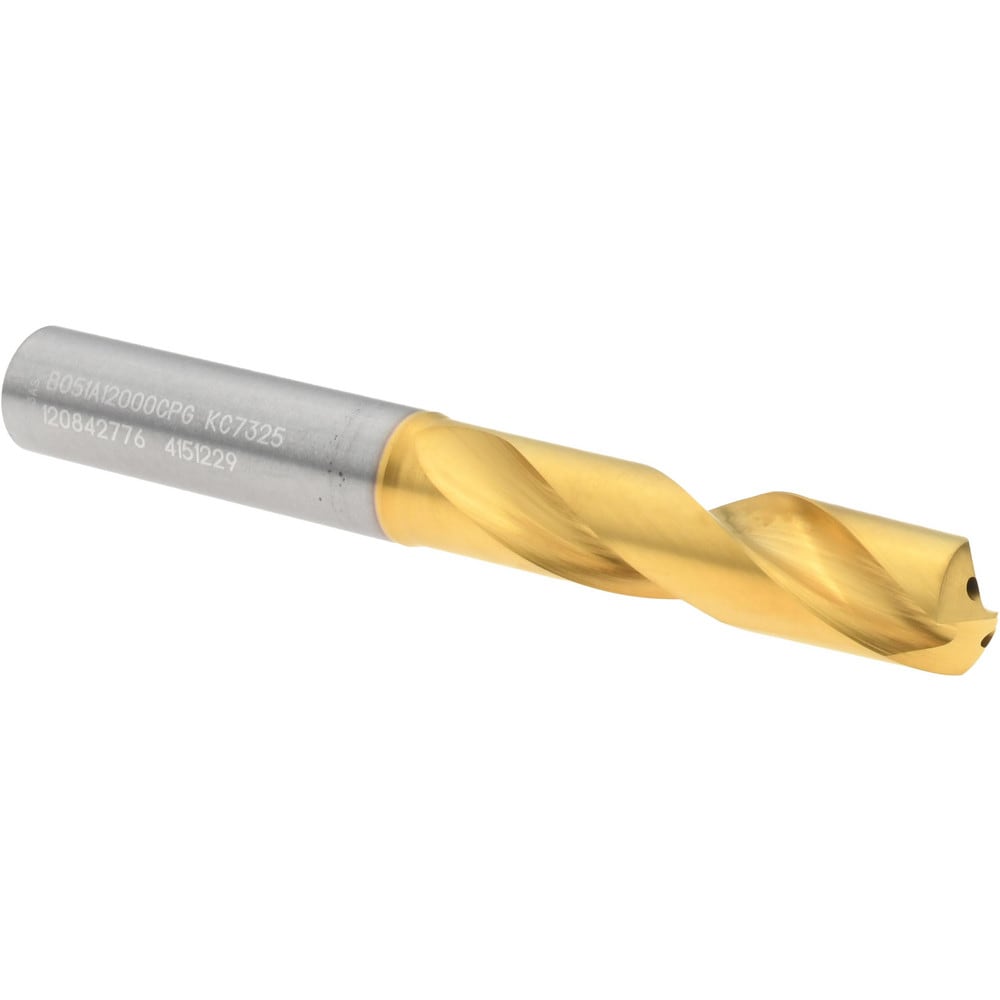

Screw Machine Length Drill Bit: 12.00 mm Dia, 140 deg Point, Solid Carbide
Item #: 58513458
Brand: Kennametal
Model #: 4151229
Product Specifications
| Drill Bit Size (mm) | 12.00 |
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | B051A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.5748 |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 2.06 |
| Drill Point Length (Decimal Inch) | 0.0811 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm; -0.0007 to 0.0000 in |
| Flute Length (Decimal Inch) | 2.1654 |
| Flute Length (mm) | 55.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Drill Bit Size Range (mm) | 11.00 - 13.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 12.00 |
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | B051A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.5748 |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 2.06 |
| Drill Point Length (Decimal Inch) | 0.0811 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm; -0.0007 to 0.0000 in |
| Flute Length (Decimal Inch) | 2.1654 |
| Flute Length (mm) | 55.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Drill Bit Size Range (mm) | 11.00 - 13.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| MSC Part # | 58513458 |
| Mfr Part # | 4151229 |
| Big Book Page # | 118 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
