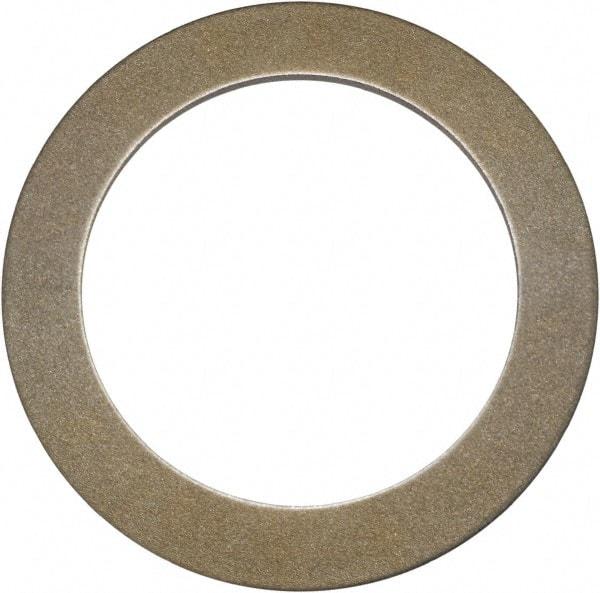

Mubea - 46mm ID, Grade 51CrV4 Chrome Vanadium Steel, Phosphate & Oil Finish, Belleville Disc Spring - 90mm OD, 6mm High, 3.5mm Thick
Item #: 53122404
Brand: Mubea
Model #: 180102
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 46.00 |
| Material | Chrome Vanadium Steel |
| Material Grade | 51CrV4 |
| Outside Diameter (mm) | 90.00 |
| Thickness (mm) | 3.50 |
| Overall Height (mm) | 6.00 |
| Deflection (mm) | 1.875 |
| Deflection to Flat (mm) | 2.50 |
| Load at Flat (N) | 17487.00 |
| Load at Deflection (N) | 14161.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
