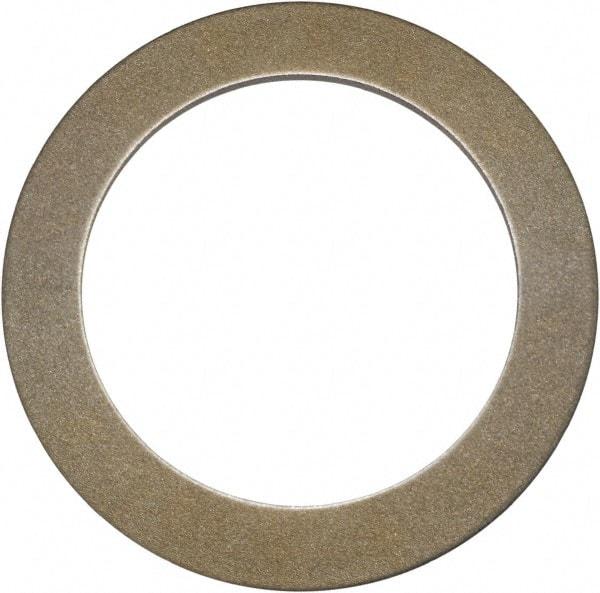

Mubea - 46mm ID, Grade 51CrV4 Chrome Vanadium Steel, Phosphate & Oil Finish, Belleville Disc Spring - 90mm OD, 7mm High, 4.7mm Thick
Item #: 53121679
Brand: Mubea
Model #: 180104
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 46.00 |
| Material | Chrome Vanadium Steel |
| Material Grade | 51CrV4 |
| Outside Diameter (mm) | 90.00 |
| Thickness (mm) | 4.70 |
| Overall Height (mm) | 7.00 |
| Deflection (mm) | 1.5 |
| Deflection to Flat (mm) | 2.00 |
| Load at Flat (N) | 45141.00 |
| Load at Deflection (N) | 31354.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
