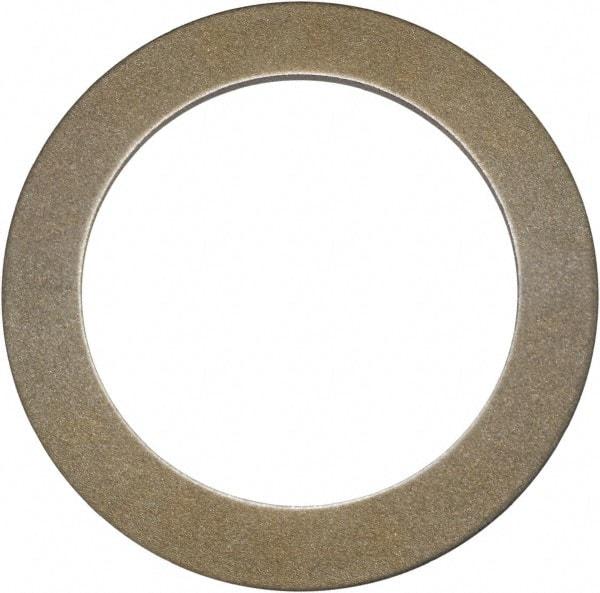

Mubea - 12.3mm ID, Grade 51CrV4 Chrome Vanadium Steel, Phosphate & Oil Finish, Belleville Disc Spring - 34mm OD, 2.2mm High, 1mm Thick
Item #: 53120432
Brand: Mubea
Model #: 170080
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (mm) | 12.30 |
| Material | Chrome Vanadium Steel |
| Material Grade | 51CrV4 |
| Outside Diameter (mm) | 34.00 |
| Thickness (mm) | 1.00 |
| Overall Height (mm) | 2.20 |
| Deflection (mm) | 0.9 |
| Deflection to Flat (mm) | 1.20 |
| Load at Flat (N) | 1208.00 |
| Load at Deflection (N) | 1110.00 |
| Finish/Coating | Phosphate & Oil |
| Hardness | Rockwell C42-C52 |
