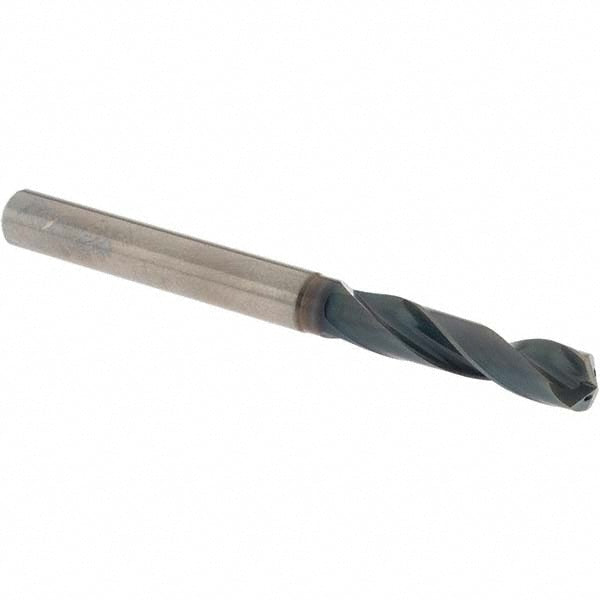

Screw Machine Length Drill Bit: 5.80 mm Dia, 140 deg Point, Solid Carbide
Item #: 44494169
Brand: OSG
Model #: HP253-2283
Product Specifications
| Drill Bit Size (mm) | 5.80 |
| Drill Bit Size (Decimal Inch) | 0.2283 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | R-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | HP253 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | EgiAs |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.004 to +0.016 mm |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.50 |
| UNSPSC Code | 23241635 |
