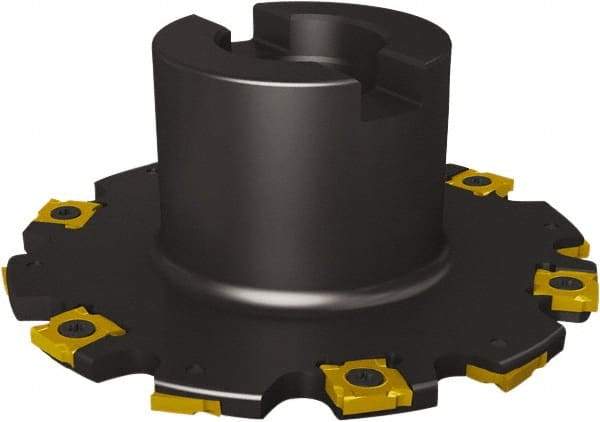

Seco - Shell Mount Connection, 3/8" Cutting Width, 0.91" Depth of Cut, 101.6mm Cutter Diam, 1" Hole Diam, 5 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 1205L, SNHQ 1205R Insert, Right Hand Cutting Direction
Item #: 53096319
Brand: Seco
Model #: 82038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 9.53 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (mm) | 23.11 |
| Maximum Depth of Cut (Decimal Inch) | 0.9100 |
| Cutter Diameter (mm) | 101.60 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 5 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1205L; SNHQ 1205R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 6600 |
| Hub Diameter (mm) | 47.75 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Decimal Inch) | 0.3819 |
| Keyway Width (mm) | 9.70 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 2.0000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.19-04.00-0.37-5 |
| Complete Insert Compatibility2 | SNHQ 1205L-MM4500-M07; SNHQ 1205L-MP2500-M07; SNHQ 1205R-F30M-M07; SNHQ 1205R-F40M-M07; SNHQ 1205R-MM4500-M07; SNHQ 1205R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 1205L-F30M-M07; SNHQ 1205L-F40M-E05; SNHQ 1205L-F40M-M07; SNHQ 1205L-H25M-E05; SNHQ 1205R-F40M-E05; SNHQ 1205R-H25M-E05 |
