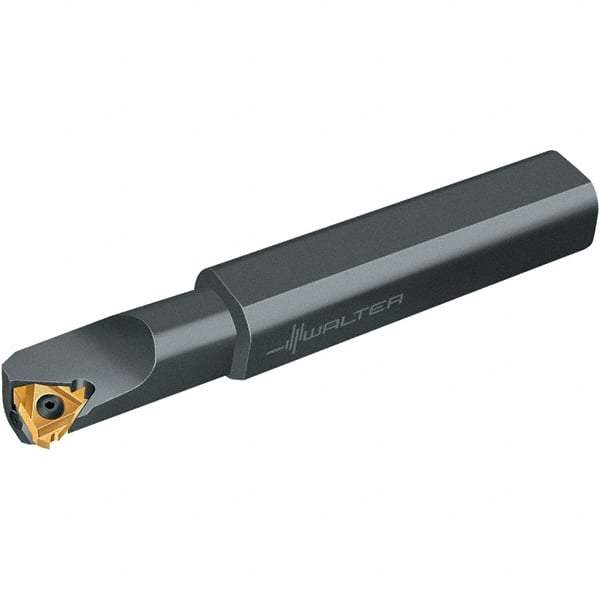

Walter - Internal Thread, Right Hand Cut, 25mm Shank Width x 22.6mm Shank Height Indexable Threading Toolholder - 200mm OAL, NTSI..-16 Insert Compatibility, S..-NTS-I Toolholder
Item #: 53058434
Brand: Walter
Model #: 5011609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 22.60 |
| Shank Height (Decimal Inch) | 0.8898 |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |
| Insert Compatibility | NTSI..-16 |
| Toolholder Style | S..-NTS-I |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 16.10 |
| Center to Cutting Edge (Decimal Inch) | 0.6339 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Shank Length (Decimal Inch) | 6.1024 |
| Minimum Bore Diameter (Decimal Inch) | 1.1417 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
