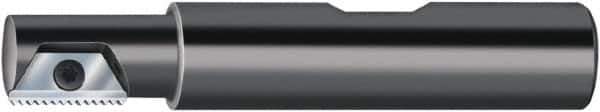

Walter-Prototyp - 20mm Cut Diam, 43mm Max Hole Depth, 20mm Shank Diam, Indexable Thread Mill - Insert Style T0192106, T1291206, T4691206, 3mm Insert Size, 1 Insert, Toolholder Style T9111000, 95mm OAL
Item #: 53058236
Brand: Walter-Prototyp
Model #: 5115659
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 43.00 |
| Maximum Hole Depth (Decimal Inch) | 1.6929 |
| Insert Style | T0192106; T1291206; T4691206 |
| Insert Size (mm) | 3.00 |
| Insert Size (Decimal Inch) | 0.1181 |
| Toolholder Style | T9111000 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Number of Threading Inserts | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Neck Diameter (mm) | 16.60 |
| Neck Diameter (Decimal Inch) | 0.6535 |
