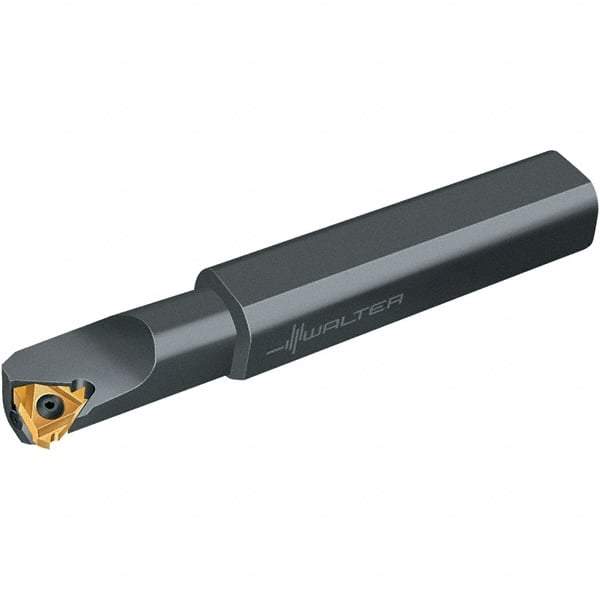

Walter - Internal Thread, Right Hand Cut, 20mm Shank Width x 18mm Shank Height Indexable Threading Toolholder - 180mm OAL, NTSI..-22 Insert Compatibility, S..-NTS-I Toolholder
Item #: 53051959
Brand: Walter
Model #: 5011617
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 18.00 |
| Shank Height (Decimal Inch) | 0.7087 |
| Overall Length (Decimal Inch) | 7.0866 |
| Overall Length (mm) | 180.00 |
| Insert Compatibility | NTSI..-22 |
| Toolholder Style | S..-NTS-I |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 15.60 |
| Center to Cutting Edge (Decimal Inch) | 0.6142 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Shank Length (Decimal Inch) | 5.1181 |
| Minimum Bore Diameter (Decimal Inch) | 1.0630 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
