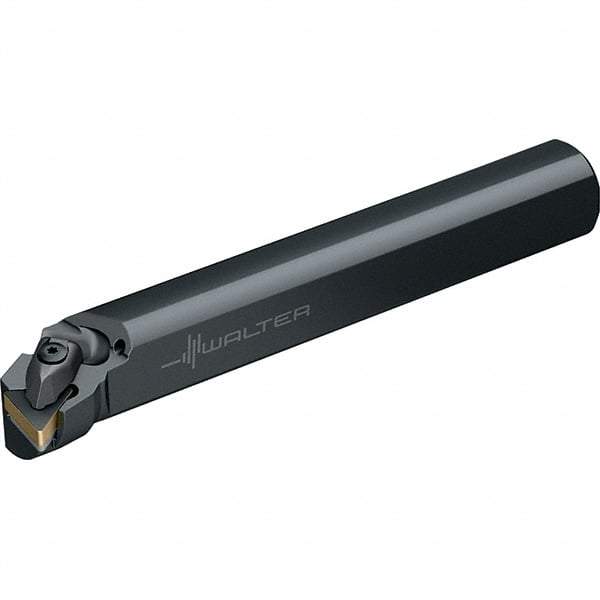

Walter - 63mm Min Bore Diam, 350mm OAL, 50mm Shank Diam, A-DTFN Indexable Boring Bar - TN.. 2204.. Insert, Clamp Holding Method
Item #: 53042222
Brand: Walter
Model #: 5522919
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DTFN |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 63.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.4803 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Insert Compatibility | TN.. 2204.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | TNMA220408; TNMA220412; TNMA220412T02020; TNMA220416; TNMA220416T02020; TNMG 220404-C5; TNMG 220408-C5; TNMG 220408-M2; TNMG 220408-MP3; TNMG 220408-MP5; TNMG 220408-NM5; TNMG 220408-NR4; TNMG 220408-RP5; TNMG 220412-MP3; TNMG 220412-MP5; TNMG 220412-NM5; |
| Toolholder Material | Steel |
