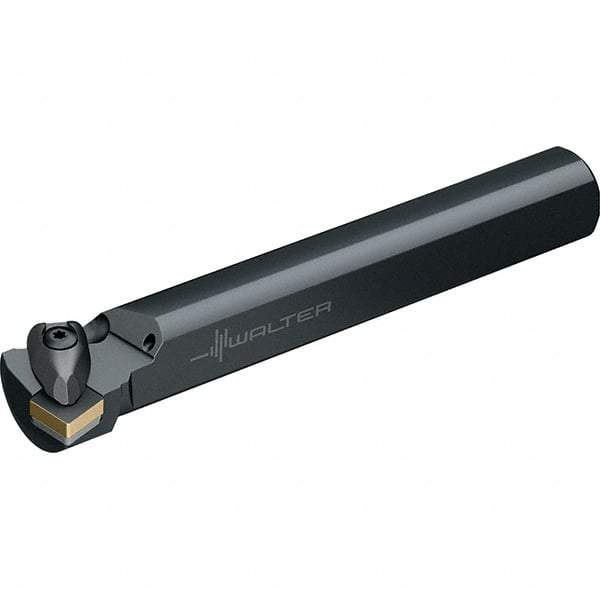

Walter - 50mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, A-DSKN Indexable Boring Bar - SN.. 1506.. Insert, Clamp Holding Method
Item #: 53040838
Brand: Walter
Model #: 5522868
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DSKN |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | SN.. 1506.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (mm) | 15.88 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Complete Insert Compatibility | SNMA 150612; SNMA 150612T02020; SNMA 150616; SNMA 150616T02020; SNMG 150608-MP5; SNMG 150608-NM5; SNMG 150608-NM6; SNMG 150608-NR4; SNMG 150612-MP5; SNMG 150612-NM5; SNMG 150612-NM6; SNMG 150612-NR4; SNMG 150612-NRT; SNMG 150612-R3; SNMG 150612-RP5; SNMG |
| Toolholder Material | Steel |
