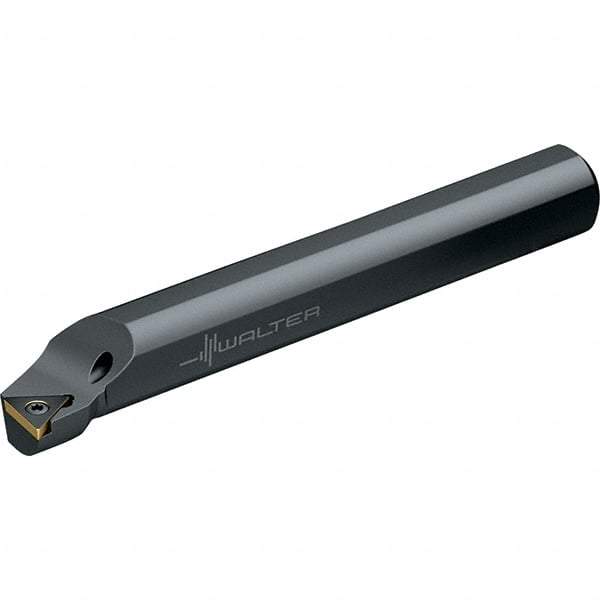

Walter - 8.5mm Min Bore Diam, 80mm OAL, 6mm Shank Diam, A-STFC Indexable Boring Bar - TC.. 06T1.. Insert, Screw Holding Method
Item #: 53040655
Brand: Walter
Model #: 5673633
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 8.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.3346 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | TC.. 06T1.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 4.50 |
| Center to Cutting Edge (Decimal Inch) | 0.1772 |
| Insert Thickness (Inch) | 5/64 |
| Insert Thickness (Decimal Inch) | 0.0781 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Insert Inscribed Circle (mm) | 3.97 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Complete Insert Compatibility | TCGT 06T101-PF2; TCGT 06T102-PF2; TCGT 06T104-PF2; TCMT 06T102-PF4; TCMT 06T104-PF4 |
| Toolholder Material | Steel |
