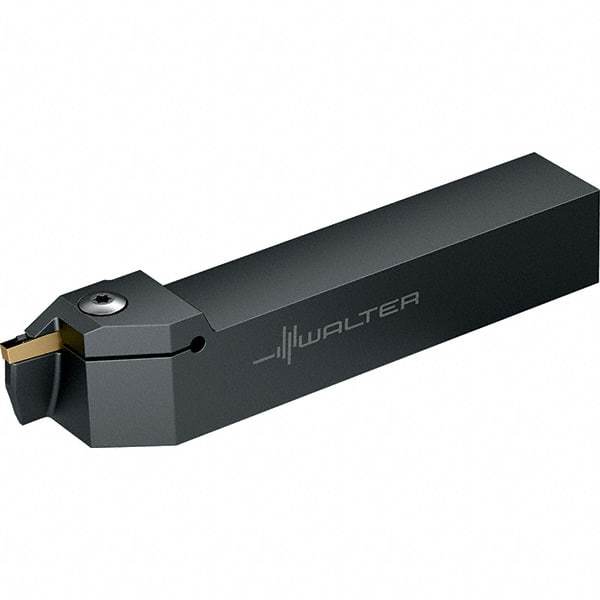

Walter - G1111, External, Right Hand, 25mm Max Depth of Cut, 6 to 6.35mm Groove Width, Indexable Grooving Tool Holder - GX24-4E6.. Insert Compatibility, 25.4mm Shank Height, 25.4mm Shank Width, 156mm OAL
Item #: 53006110
Brand: Walter
Model #: 5936345
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.35 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 156.00 |
| Overall Length (Decimal Inch) | 6.1417 |
| Toolholder Style | G1111 |
| Insert Compatibility | GX24-4E6.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9270 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8110 |
| Full Radius Insert | No |
| Shank Length (mm) | 110.00 |
| Shank Length (Decimal Inch) | 4.3307 |
| Complete Insert Compatibility | GX24-4E600N030-CE4; GX24-4E600N03-CE4; GX24-4E600N050-GD3; GX24-4E600N050-UA4; GX24-4E600N050-UF4; GX24-4E600N05-GD3; GX24-4E600N05-GD6; GX24-4E600N05-UD6; GX24-4E600N05-UF4; GX24-4E600N080-UF4; GX24-4E600N08-UF4; GX24-4E600N300-RD4; GX24-4E600N30-RD4 |
