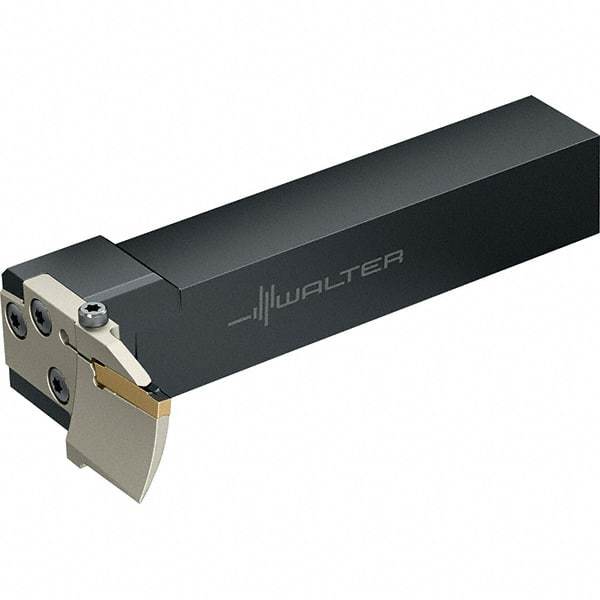

Walter - NCOE, External, Right Hand, 21mm Max Depth of Cut, 6 to 6mm Groove Width, Indexable Grooving Tool Holder - GX24-4.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 141.3mm OAL
Item #: 53005484
Brand: Walter
Model #: 5199435
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Maximum Depth of Cut (mm) | 21.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 141.30 |
| Overall Length (Decimal Inch) | 5.5630 |
| Toolholder Style | NCOE |
| Insert Compatibility | GX24-4.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 47.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.8504 |
| Head Length (mm) | 26.40 |
| Head Length (Decimal Inch) | 1.0394 |
| Full Radius Insert | Yes |
| Shank Length (mm) | 114.90 |
| Shank Length (Decimal Inch) | 4.5236 |
| Complete Insert Compatibility | GX24-4E600N030-CE4; GX24-4E600N03-CE4; GX24-4E600N050-GD3; GX24-4E600N050-UA4; GX24-4E600N050-UF4; GX24-4E600N05-GD3; GX24-4E600N05-GD6; GX24-4E600N05-UD6; GX24-4E600N05-UF4; GX24-4E600N080-UF4; GX24-4E600N08-UF4; GX24-4E600N300-RD4; GX24-4E600N30-RD4 |
