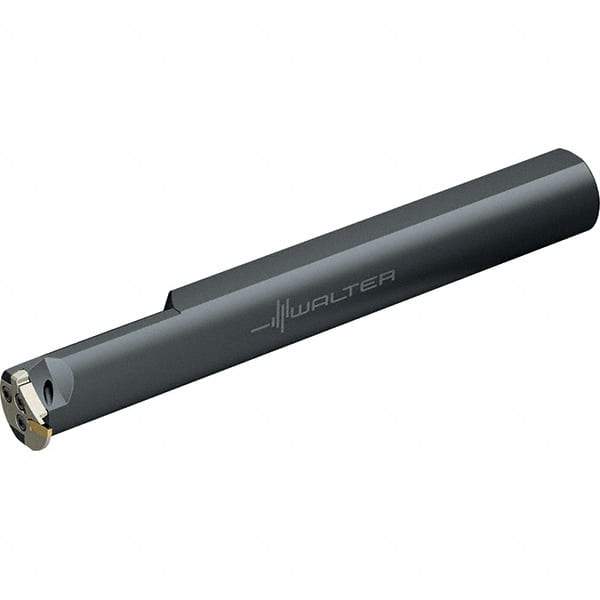

Walter - NCCI, Internal, Left Hand, 2mm Max Depth of Cut, 0.6 to 1.7mm Groove Width, Indexable Grooving Tool Holder - GX09-1.. Insert Compatibility, 20mm Shank Width, 180.3mm OAL, Through Coolant
Item #: 53004123
Brand: Walter
Model #: 5009510
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0236 |
| Minimum Groove Width (mm) | 0.60 |
| Maximum Groove Width (mm) | 1.70 |
| Maximum Groove Width (Decimal Inch) | 0.0669 |
| Overall Length (mm) | 180.30 |
| Overall Length (Decimal Inch) | 7.0984 |
| Toolholder Style | NCCI |
| Insert Compatibility | GX09-1.. |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Self Clamp |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Center to Cutting Edge (mm) | 14.50 |
| Center to Cutting Edge (Decimal Inch) | 0.5709 |
| Head Length (mm) | 39.40 |
| Head Length (Decimal Inch) | 1.5512 |
| Full Radius Insert | No |
| Shank Length (mm) | 140.90 |
| Shank Length (Decimal Inch) | 5.5472 |
| Complete Insert Compatibility | GX09-1E200N02-GD3; GX09-1E200N02-UF4; GX09-1E250N02-GD3; GX09-1S1.00R/L; GX09-1S1.20R/L; GX09-1S1.40R/L; GX09-1S1.70R/L; GX09-1S1.95N; GX09-1S2.25N |
