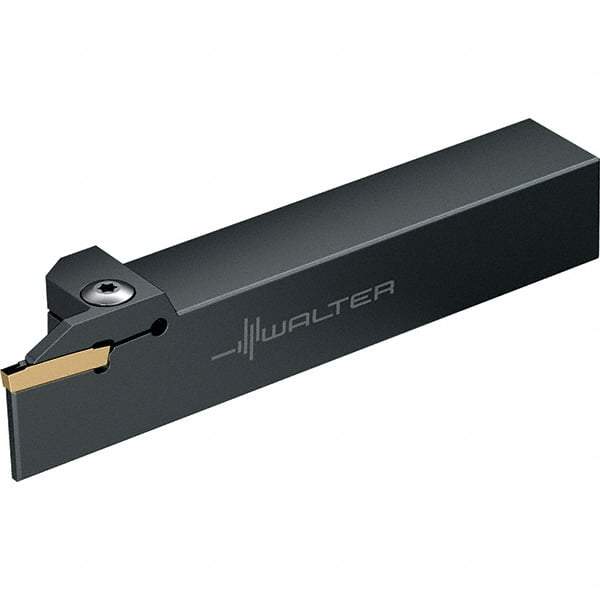

Walter - External Thread, 1-1/2" Max Depth of Cut, 175mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 31.75mm Shank Height x 31.75mm Shank Width, G1011 Toolholder Style
Item #: 53003190
Brand: Walter
Model #: 6324571
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (mm) | 8.00 |
| Overall Length (Decimal Inch) | 6.8898 |
| Overall Length (mm) | 175.00 |
| Toolholder Style | G1011 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2874 |
| Head Length (mm) | 65.00 |
| Head Length (Decimal Inch) | 2.5591 |
| Shank Length (Decimal Inch) | 4.3307 |
| Shank Length (mm) | 110.00 |
