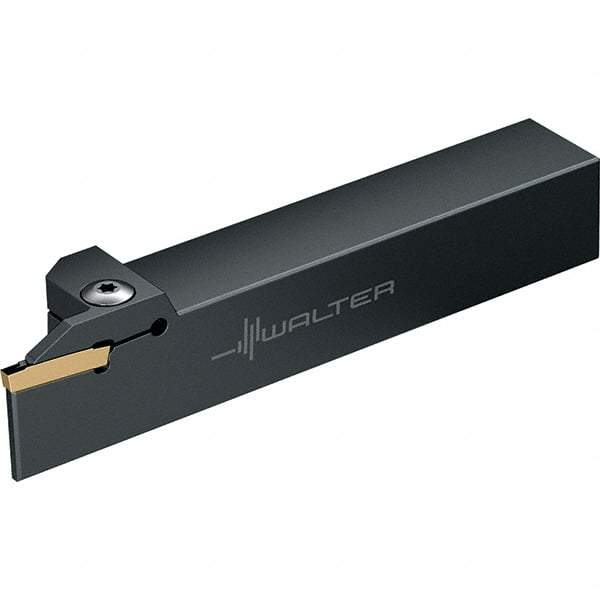

Walter - External Thread, 0.827" Max Depth of Cut, 150.01mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 25.4mm Shank Height x 25.4mm Shank Width, GX24-3E5/F5.. Insert Style, G1011 Toolholder Style
Item #: 53002580
Brand: Walter
Model #: 5622810
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 21.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.9060 |
| Overall Length (mm) | 150.01 |
| Toolholder Style | G1011 |
| Insert Compatibility | GX24-3E5/F5.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0160 |
| Head Length (mm) | 40.01 |
| Head Length (Decimal Inch) | 1.5750 |
| Shank Length (Decimal Inch) | 4.3307 |
| Shank Length (mm) | 110.00 |
| Complete Insert Compatibility | GX24-3E500N030-CE4; GX24-3E500N03-CE4; GX24-3E500N03-CF5; GX24-3E500N040-GD3; GX24-3E500N040-UA4; GX24-3E500N040-UF4; GX24-3E500N04-GD3; GX24-3E500N04-GD6; GX24-3E500N04-UD6; GX24-3E500N04-UF4; GX24-3E500N080-UF4; GX24-3E500N08-UF4; GX24-3E500N250-RD4 |
