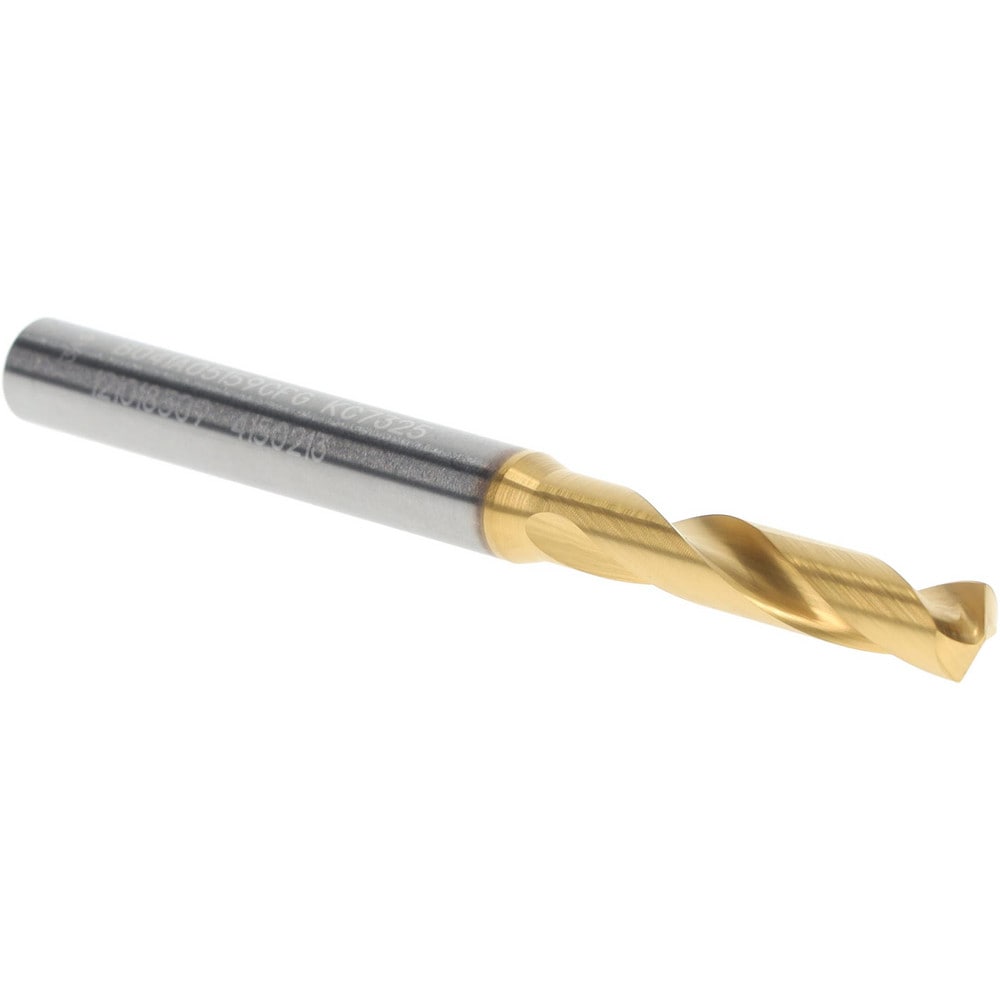

Screw Machine Length Drill Bit: 13/64" Dia, 140 deg Point, Solid Carbide
Item #: 58511007
Brand: Kennametal
Model #: 4150213
Product Specifications
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.7874 |
| Maximum Drilling Depth (mm) | 20.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.86 |
| Drill Point Length (Decimal Inch) | 0.0338 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.012 to 0.000 mm; -0.0005 to 0.0000 in |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.7874 |
| Maximum Drilling Depth (mm) | 20.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.86 |
| Drill Point Length (Decimal Inch) | 0.0338 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.012 to 0.000 mm; -0.0005 to 0.0000 in |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| MSC Part # | 58511007 |
| Mfr Part # | 4150213 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
