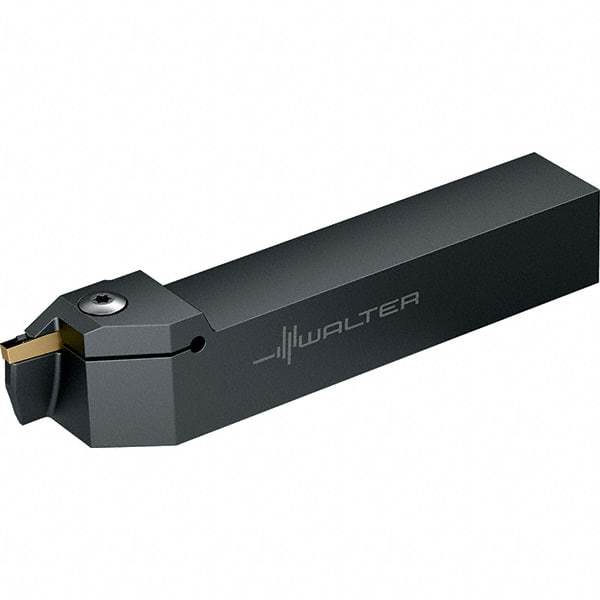

Walter - G1111, External, Right Hand, 25mm Max Depth of Cut, 5 to 5mm Groove Width, Indexable Grooving Tool Holder - GX24-3E5.., GX24-3F5.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 156mm OAL
Item #: 52996998
Brand: Walter
Model #: 5950366
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 156.00 |
| Overall Length (Decimal Inch) | 6.1417 |
| Toolholder Style | G1111 |
| Insert Compatibility | GX24-3E5..; GX24-3F5.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 26.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0315 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8110 |
| Full Radius Insert | No |
| Complete Insert Compatibility | GX24-3E500N030-CE4; GX24-3E500N03-CE4; GX24-3E500N03-CF5; GX24-3E500N040-GD3; GX24-3E500N040-UA4; GX24-3E500N040-UF4; GX24-3E500N04-GD3; GX24-3E500N04-GD6; GX24-3E500N04-UD6; GX24-3E500N04-UF4; GX24-3E500N080-UF4; GX24-3E500N08-UF4; GX24-3E500N250-RD4 |
