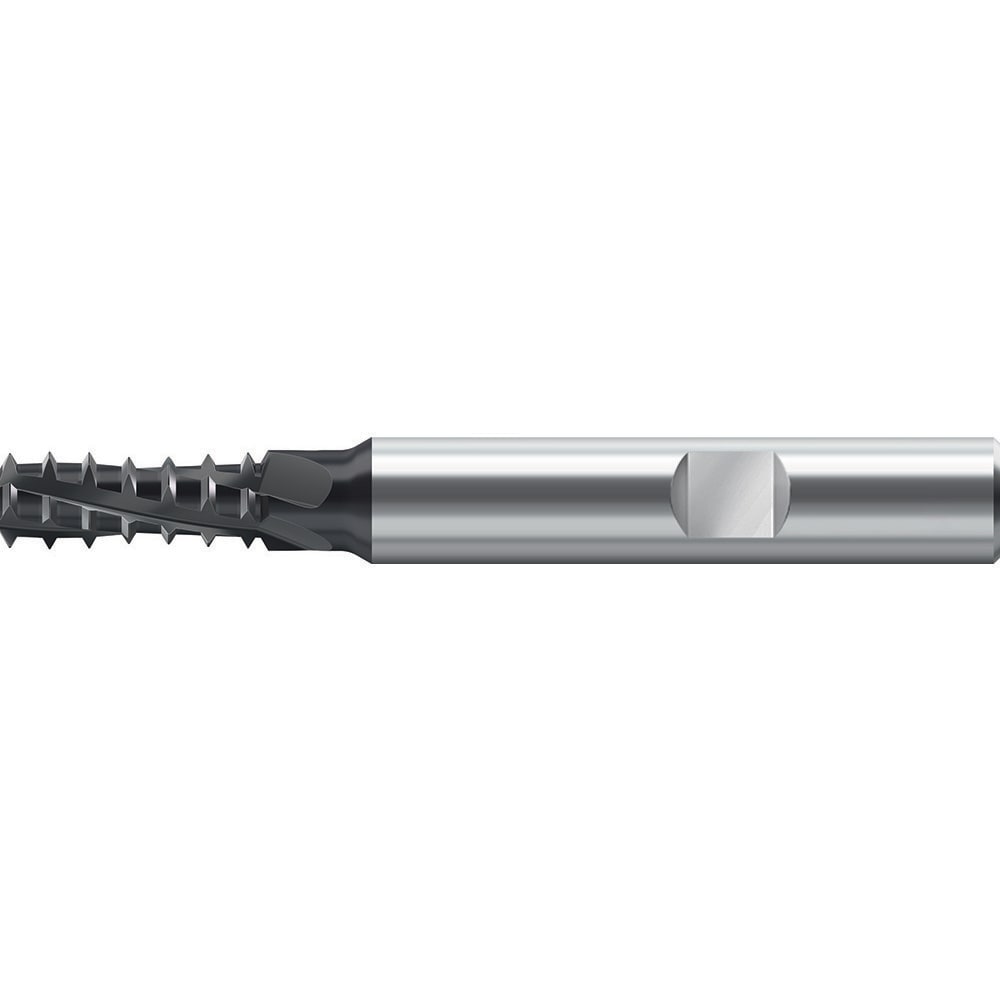

Helical Flute Thread Mill: M10x1.5, Internal, 4 Flute, 8.0000 mm Shank Dia, Solid Carbide
Item #: 55406565
Brand: Walter-Prototyp
Model #: 8117566
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M10x1.5 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Cutting Diameter (mm) | 7.90 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.3110 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8268 |
| Length of Cut (mm) | 21.0000 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 68.0000 |
| Overall Length (Decimal Inch) | 2.6772 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC620-M-W5D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M10x1.5 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Cutting Diameter (mm) | 7.90 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.3110 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8268 |
| Length of Cut (mm) | 21.0000 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 68.0000 |
| Overall Length (Decimal Inch) | 2.6772 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC620-M-W5D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| MSC Part # | 55406565 |
| Mfr Part # | 8117566 |
| Country of Origin Country of Origin is subject to change | Germany |
