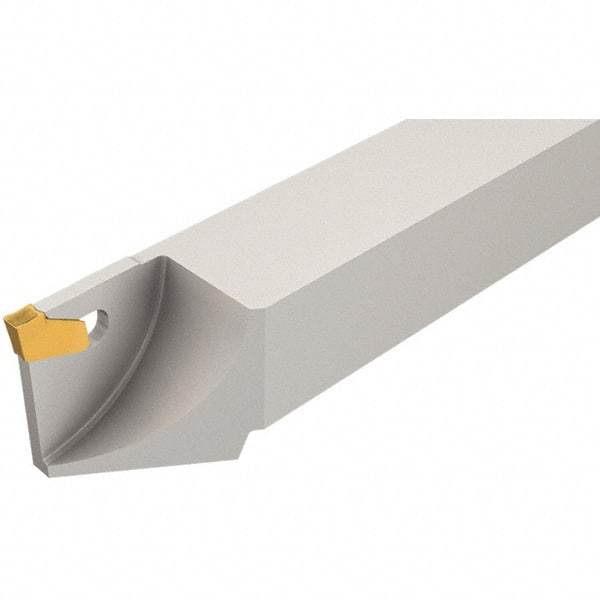

Iscar - SGTF, Right Hand Cut, 1.38" Max Workpc Diam, Indexable Cutoff Toolholder - 16mm Shank Width, 16mm Shank Height, 110mm OAL
Item #: 52734365
Brand: Iscar
Model #: 2301220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3800 |
| Series | Self Grip |
| Toolholder Style | SGTF |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Insert Holding Method | Self Grip |
| Through Coolant | No |
| Minimum Insert Width (mm) | 2.70 |
| Minimum Insert Width (Decimal Inch) | 0.1063 |
| Maximum Insert Width (mm) | 3.35 |
| Maximum Insert Width (Decimal Inch) | 0.1319 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 18.00 |
| Head Length (Decimal Inch) | 0.7087 |
| Shank Length (Decimal Inch) | 4.3500 |
| Height to Shank Top (mm) | 4.00 |
| Height to Shank Top (Decimal Inch) | 0.1575 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
