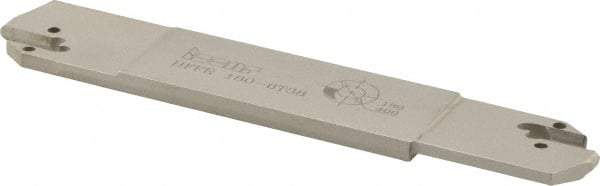

Iscar - 6mm Groove Width, 38mm Max Depth of Cut, Right Hand Cut, HFF Indexable Grooving Blade - HFPR/L 6030... Insert Style, Series Heliface
Item #: 52720646
Brand: Iscar
Model #: 2500358
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Blade Style | HFF |
| Series | Heliface |
| Minimum Workpiece Diameter (mm) | 180.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 7.0866 |
| Maximum Workpiece Diameter (mm) | 400.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 15.7480 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 5.20 |
| Blade Width (Decimal Inch) | 0.2047 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | HFPR/L 6030... |
