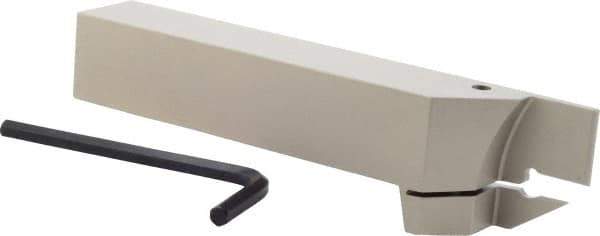

Iscar - HELI, External, Left Hand, 0.157 to 3/16" Groove Width, Indexable Grooving Tool Holder - 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 52719952
Brand: Iscar
Model #: 2500453
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1870 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | HELI |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heli-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.9700 |
| Head Length (Decimal Inch) | 1.6500 |
