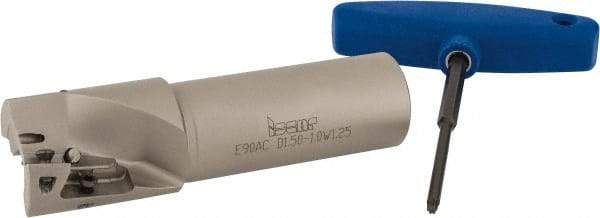

Iscar - 1-1/2" Cut Diam, 1.03" Max Depth of Cut, 1-1/4" Shank Diam, 5" OAL, Indexable Square Shoulder End Mill - AD.T 1505.., XPMT 1004 Inserts, Weldon Shank, 90° Lead Angle, Series Helimill
Item #: 52707635
Brand: Iscar
Model #: 3100668
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 5.0000 |
| Lead Angle | 90 |
| Series | Helimill |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.0300 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | E90AC |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.9700 |
| Weldon Flat | Yes |
| Insert Compatibility | AD.T 1505..; XPMT 1004 |
