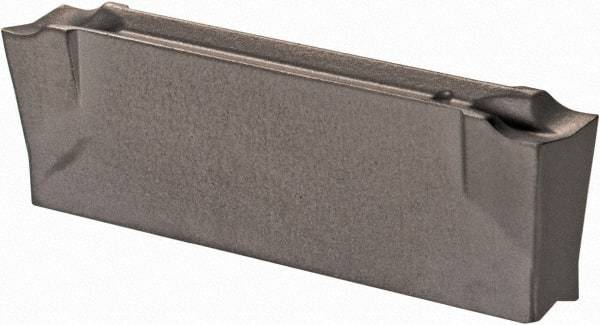

Iscar - DGN3102 J IC20 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.008" Cnr Rad, Single End
Item #: 52700507
Brand: Iscar
Model #: 6002345
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 3102 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Cut-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Maximum Depth of Cut (mm) | 18.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Full Radius | No |
| Multi-Use Application | Facing; Grooving |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | DGN 3102J |
