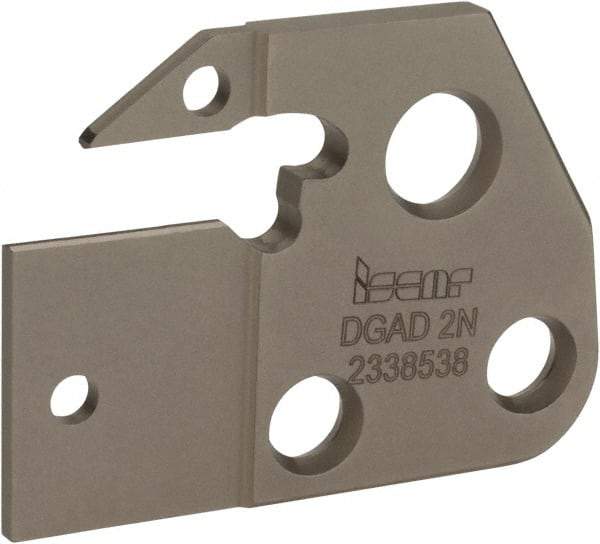

Iscar - 1.9 to 2.5mm Groove Width, Neutral Cut, DGAD Indexable Grooving Blade - DGN.., DGN R/L.., HGN.., HGR/L.., GRIP.. Insert Style, Series Do Grip
Item #: 52699527
Brand: Iscar
Model #: 2394966
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 1.90 |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Blade Style | DGAD |
| Series | Do Grip |
| Maximum Workpiece Diameter (mm) | 32.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2598 |
| Blade Height (mm) | 30.00 |
| Blade Height (Decimal Inch) | 1.1811 |
| Blade Width (mm) | 3.20 |
| Blade Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 41.50 |
| Overall Length (Decimal Inch) | 1.6339 |
| Manufacturers Catalog Number | DGAD 2N |
| Insert Style | DGN..; DGN R/L..; HGN..; HGR/L..; GRIP.. |
