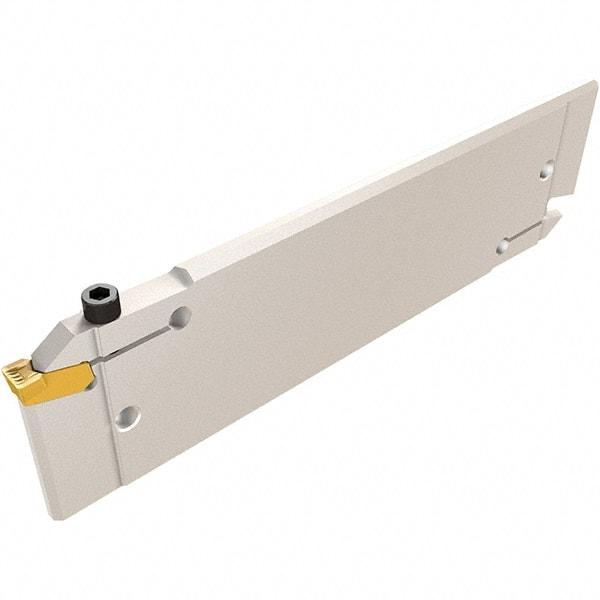

Iscar - 8" Groove Width, 43mm Max Depth of Cut, Neutral Cut, CGHN Indexable Grooving Blade - GIMF, GIMM 8CC, GIMY, GIMY (Full Radius), GIMY-F, GIPY Insert Style, Series Cut Grip
Item #: 52695848
Brand: Iscar
Model #: 2860059
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 43.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6929 |
| Blade Style | CGHN |
| Series | Cut Grip |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 7.40 |
| Blade Width (Decimal Inch) | 0.2913 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 190.00 |
| Overall Length (Decimal Inch) | 7.4803 |
| Insert Style | GIMF; GIMM 8CC; GIMY; GIMY (Full Radius); GIMY-F; GIPY |
| Complete Insert Compatibility | GIMY 808; GIMY 840; GIMY 840F; GIPY 8.00-4.00 |
