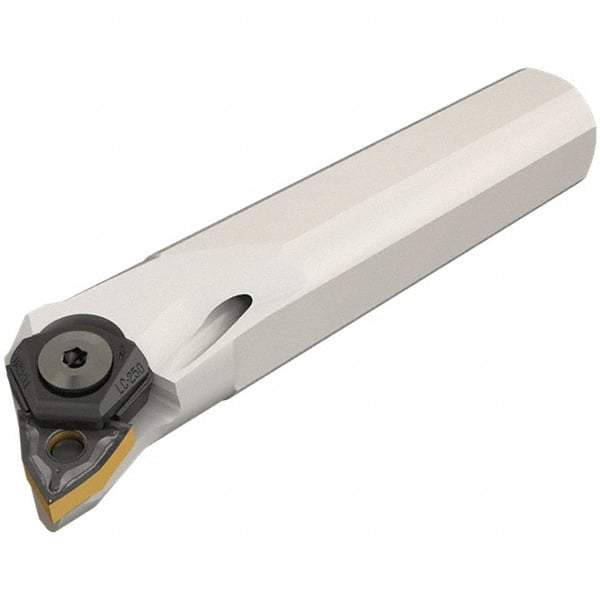

Iscar - 25mm Min Bore Diam, 100mm OAL, 20mm Shank Diam, A-MWLN-W Indexable Boring Bar - 28mm Max Bore Depth, WNM.. 06T3.. Insert, Wedge Holding Method
Item #: 52693587
Brand: Iscar
Model #: 3601724
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MWLN-W |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 28.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | WNM.. 06T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Rake Angle | -14 |
| Complete Insert Compatibility | WNMA 06T304; WNMA 06T308; WNMA 06T312; WNMG 06T301-NF; WNMG 06T302-NF; WNMG 06T304-GN; WNMG 06T304-NF; WNMG 06T304-PP; WNMG 06T304-TF; WNMG 06T308-GN; WNMG 06T308-NF; WNMG 06T308-PP; WNMG 06T308-TF; WNMG 06T312-GN; WNMG 06T312-TF |
| Toolholder Material | Steel |
