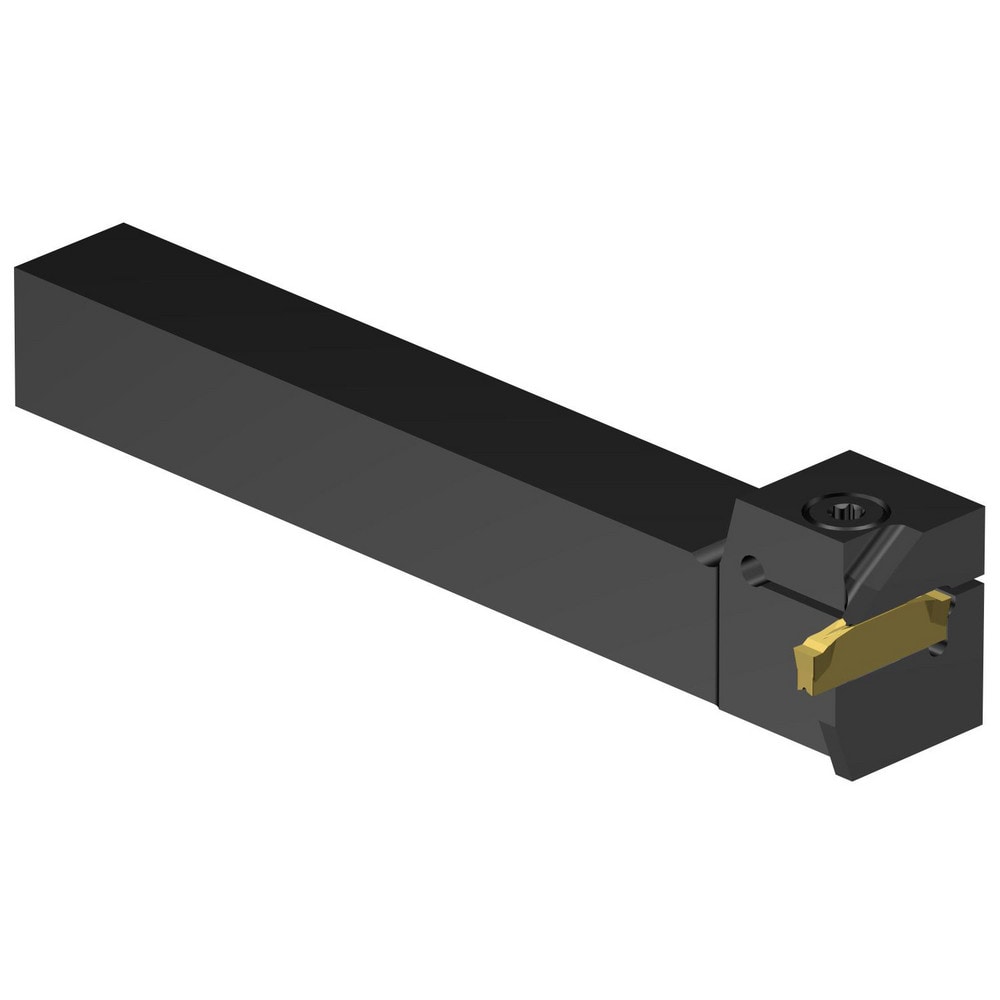

Indexable Grooving Toolholder: C2A-RS16-LGG07B-DC, External, Left Hand, Neutral & Right Hand, 0.1181" Max Groove Width
Item #: 05776984
Brand: Sandvik Coromant
Model #: 8425687
Product Specifications
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 3 |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Maximum Depth of Cut (mm) | 7.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | C2A-RS..LG..B..DC |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | G2 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | CoroCut 2 |
| Overall Length (mm) | 125 |
| Overall Length (Decimal Inch) | 4.9213 |
| Minimum Overhang (Decimal Inch) | 0.9291 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Center to Cutting Edge (mm) | 25.00 |
| Head Height (Decimal Inch) | 0.6299 |
| Head Height (mm) | 16.000 |
| Head Length (Decimal Inch) | 1.5591 |
| Head Length (mm) | 39.60 |
| UNSPSC Code | 27112809 |
| Mount Type | Clamp |
| Manufacturers Catalog Number | C2A-RS16-LGG07B-DC |
| Toolholder Material | Steel |
| Insert Hand | Neutral; Left Hand; Right Hand |
| Complete Insert Compatibility | CoroCut 2 -size G (C2I-G2-0300-) |
| Coolant Through | No |
