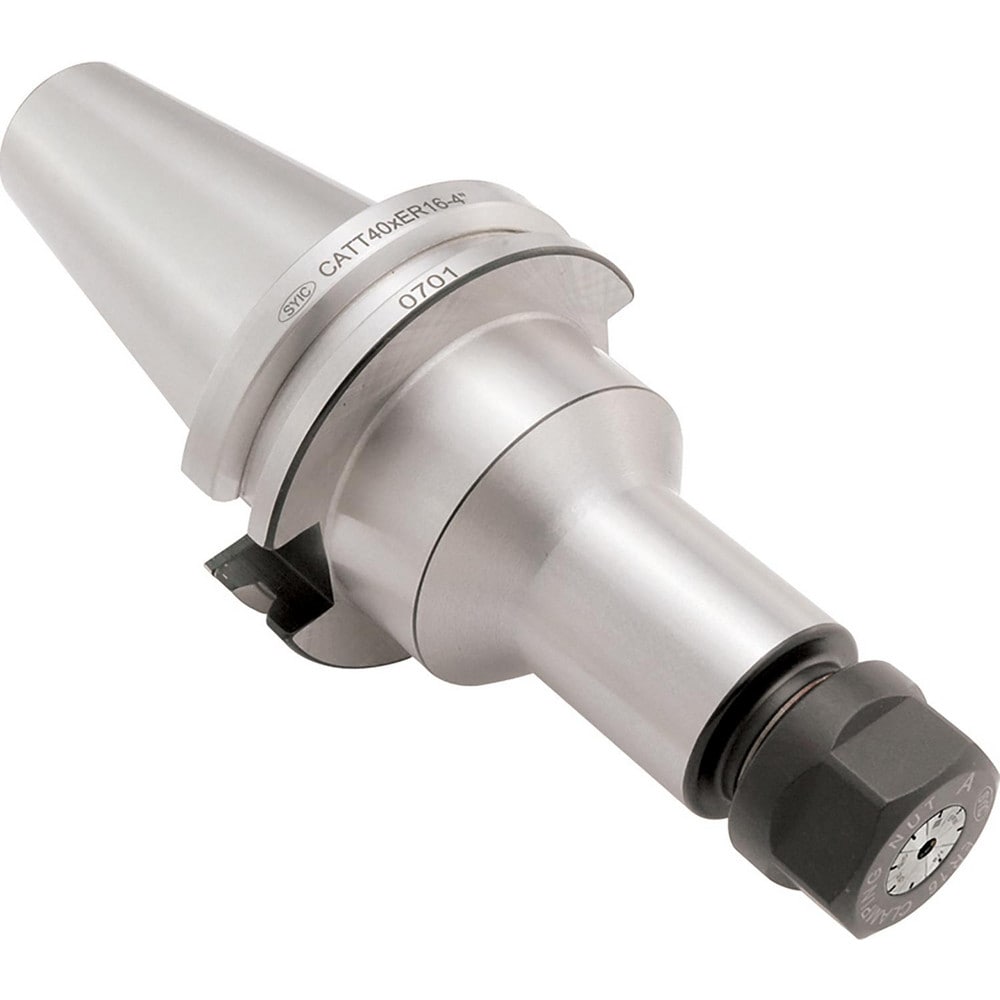

Collet Chuck: 0.4130 to 0.4130" Capacity, ER Collet
Item #: 10155588
Brand: Techniks
Model #: 43.122.16.400
Product Specifications
| Collet System | ER |
| Collet Series | ER16 |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 4.0000 in |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.4130 |
| Maximum Collet Capacity (Decimal Inch) | 0.4130 |
| Overall Length (Decimal Inch) | 6.69 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.5000 |
| Type | CAT40 |
| UNSPSC Code | 27112808 |
