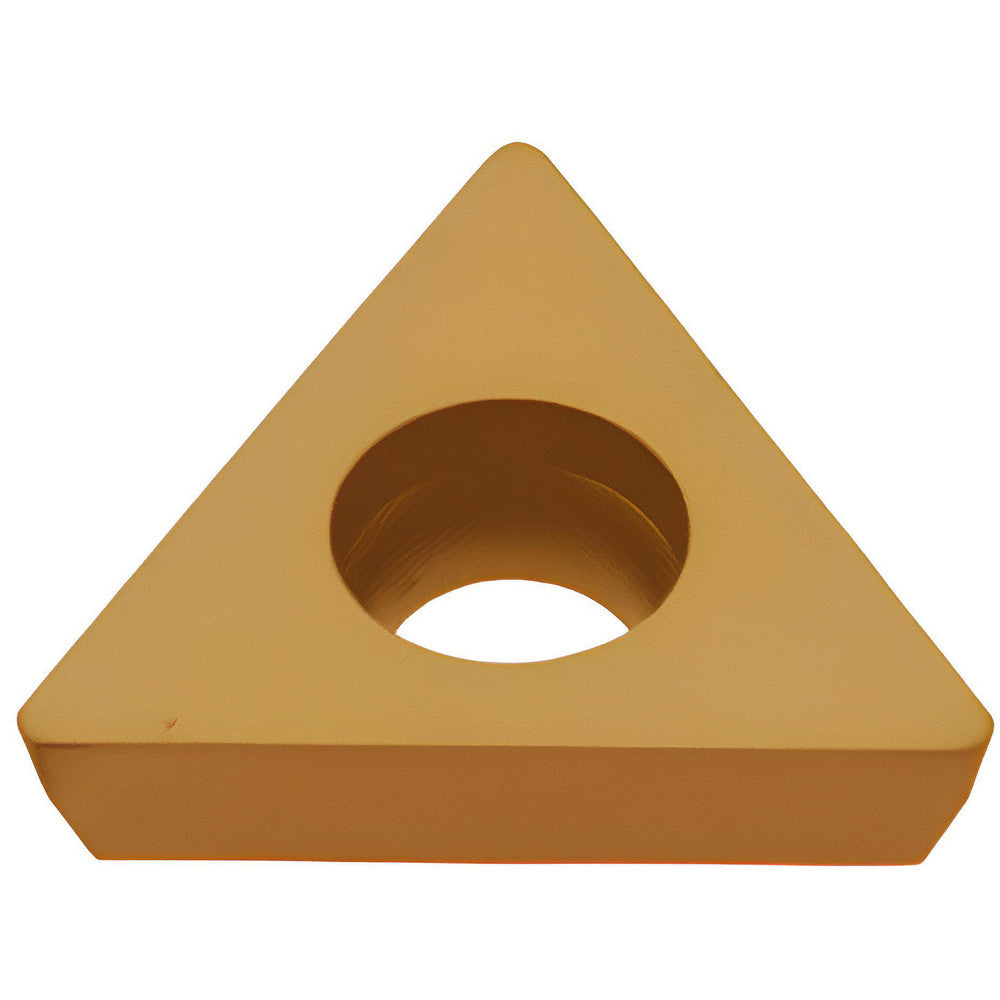

Turning Insert: TPMW21.52 T5115, Carbide
Item #: 20899803
Brand: Tungaloy
Model #: 6862092
Product Specifications
| ANSI Insert Code | TPMW21.52 |
| ISO Insert Code | TPMW110208 |
| Relief Angle | 11 |
| Insert Style | TPMW |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | T5115 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | TPMW |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4330 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | TPMW110208 T5115 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6862092 |
| Material Grade | K20; K10 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPMW 21.52 |
| Width (Decimal Inch - 4 Decimals) | 0.4330 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 21.52 |
| ISO Size Code | 110208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.52 |
