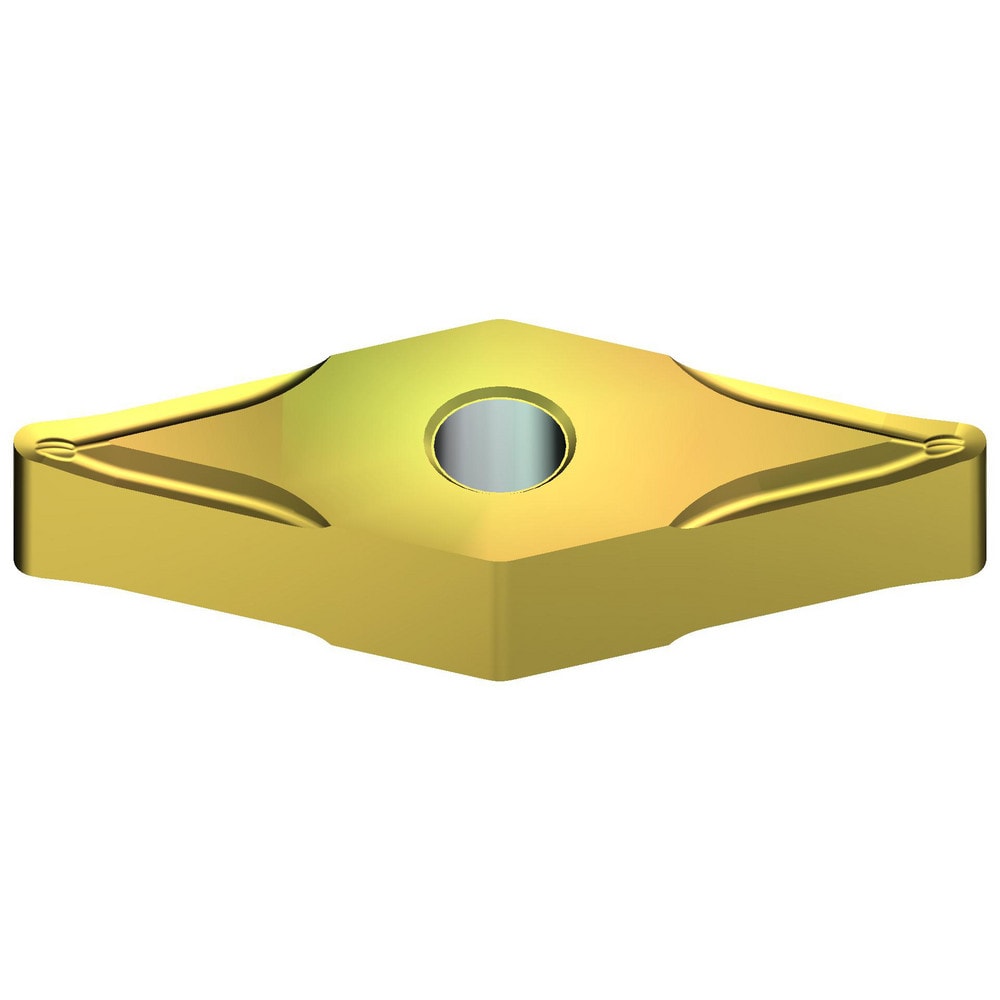

Turning Insert: VNGG331ESU T2500Z, Cermet
Item #: 23218878
Brand: Sumitomo
Model #: 10U5AEZ
Product Specifications
| ANSI Insert Code | VNGG331 |
| ISO Insert Code | VNGG |
| Relief Angle | 0 |
| Insert Style | VNGG |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35 |
| Manufacturer Grade | T2500Z |
| Coating/Finish | AlN |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | T2500Z |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Cermet |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Insert Holding Method | Pin; Clamp |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6535 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | P; K |
| Chip Breaker | ESU |
| ANSI Size Code | 331 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
