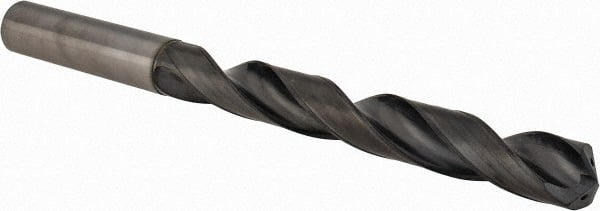

Jobber Length Drill Bit: 0.6693″ Dia, 135 °, Solid Carbide TiAlCr, TiSi Finish, 7.9921″ OAL, Straight-Cylindrical Shank, Series MDW-HGS
Item #: 52659265
Brand: Sumitomo
Model #: 5VHY534
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6693 |
| Drill Bit Size (mm) | 17.00 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlCr/TiSi |
| Drill Point Angle (Degrees) | 135 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6693 |
| Overall Length (mm) | 203.00 |
| Overall Length (Decimal Inch) | 7.9921 |
| Flute Length (mm) | 136.00 |
| Flute Length (Decimal Inch) | 5.3543 |
| Series | MDW-HGS |
| Tool Application | Metal Cutting |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 17.00 |
| Shank Length (mm) | 17.00 |
| Shank Length (Decimal Inch) | 0.6693 |
| Drill Point Length (mm) | 3.52 |
| Drill Point Length (Decimal Inch) | 0.1386 |
| Drill Bit Diameter Tolerance | h8 |
| Web Configuration | Tapered |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
